Research Report: Functional Annotation of xylR (UniProt P06519) in Pseudomonas putida (TOL system)

0) Mandatory verification: correct gene/protein identity

The UniProt accession P06519 corresponds to Pseudomonas putida (classically strain mt-2) XylR, a σ54-dependent bacterial enhancer-binding protein (bEBP) that controls expression of promoters in the TOL (pWW0) plasmid catabolic network for aromatic hydrocarbons. This XylR is specifically described as a prokaryotic enhancer-binding transcription factor of the NtrC family, responsive to aromatic effectors, and is explicitly linked to TOL-plasmid promoters Pu and Ps rather than to xylose utilization regulation. (dvorak2023waterpotentialgoverns pages 1-2, devos2002decipheringtheaction pages 1-2, bertoni1997geneticevidenceof pages 1-2)

1) Key concepts and definitions (current understanding)

1.1 σ54-dependent transcription and bEBPs

σ54 (RpoN)-dependent promoters form unusually stable closed complexes with RNA polymerase that require ATP-driven remodeling by bEBPs to become transcriptionally active. A core mechanistic model is that bEBPs use a central AAA+ ATPase domain to couple ATP hydrolysis to remodeling of the σ54–RNAP complex, driving DNA melting/open complex formation at the −12/−24 promoter region. (bush2012theroleof pages 4-6)

1.2 What XylR is (and is not)

XylR (P06519) is not an enzyme and does not catalyze a metabolic reaction; it is a signal-responsive transcriptional regulator that activates transcription of genes enabling catabolism of aromatic hydrocarbons. In the TOL system it activates the Pu promoter driving the upper operon and activates σ54-class promoter Ps1 to induce xylS, thereby coordinating the broader catabolic program. (dvorak2023waterpotentialgoverns pages 1-2, bertoni1997geneticevidenceof pages 1-2, tropel2004bacterialtranscriptionalregulators pages 9-10)

1.3 Domain architecture and functional modules

Multiple primary studies and a recent 2023 paper support a modular A–B–C–D organization:
- A domain (N-terminus): effector/inducer recognition and intramolecular repression in the absence of inducer
- B region/linker: transmits conformational changes; influences effector specificity
- C domain (central AAA+ ATPase): ATP binding/hydrolysis powering σ54 activation
- D domain (C-terminus): DNA binding to upstream activating sequences (UAS), typically via an HTH-type motif

These modules are depicted in the 2023 work’s domain schematic (Figure 1A). (devos2002decipheringtheaction pages 1-2, garmendia2000theroleof pages 1-2, dvorak2023waterpotentialgoverns media ed53c3c9)

2) Biological function, pathway context, and cellular localization

2.1 Pathway context: TOL plasmid catabolic network

XylR is described as the principal/master regulator in the TOL plasmid network controlling degradation of toluene and xylene isomers. It activates the Pu and Ps promoters, which drive expression of operons that convert aromatic hydrocarbons through intermediates to corresponding carboxylic acids and downstream products. (dvorak2023waterpotentialgoverns pages 1-2, bertoni1997geneticevidenceof pages 1-2)

2.2 Promoters and regulatory layout (Pu, Ps1/Ps2, Pr)

The xylR/xylS intergenic region contains multiple promoters:
- Pr1/Pr2: tandem σ70-dependent promoters driving xylR
- Ps2: constitutive σ70-dependent promoter for xylS
- Ps1: σ54-dependent, inducible promoter for xylS

XylR binds UAS sequences that overlap the Pr promoters and are within/near Ps1, enabling autoregulation (repression of Pr) and activation of Ps1 under inducing conditions. (marques1998activationandrepression pages 1-2)

2.3 Cellular localization

All mechanistic evidence in the retrieved corpus is consistent with XylR functioning as a cytoplasmic DNA-binding transcription factor acting on plasmid-borne promoters (Pu/Ps/Pr) inside the cell; there is no indication of membrane localization or secretion. (bertoni1997geneticevidenceof pages 1-2, garmendia2000theroleof pages 1-2)

3) Mechanism of action (experimental evidence)

3.1 Effector sensing and relief of intramolecular repression

The N-terminal A domain is described as binding aromatic effectors and repressing the central activation domain until inducer binding. Deletion of the N-terminal region (e.g., removal of the A domain) yields constitutive activity, supporting the “A-domain-as-repressor” model. (devos2002decipheringtheaction pages 1-2, dvorak2021anupdatedstructural pages 10-12)

3.2 ATPase-driven activation of σ54 promoters

XylR belongs to NtrC-like bEBPs that activate σ54 transcription via ATP hydrolysis. A classic mechanistic description includes UAS binding, oligomerization, ATP hydrolysis, and productive contact with σ54-RNAP to drive open-complex formation. (bertoni1997geneticevidenceof pages 1-2, tropel2004bacterialtranscriptionalregulators pages 17-18, bush2012theroleof pages 4-6)

Genetic analysis supports separation of activation and repression functions: XylR variants defective in activation of Ps (σ54 promoter) remained competent for repression of Pr (autoregulation), indicating distinct mechanistic requirements. (bertoni1997geneticevidenceof pages 4-5)

3.3 Enhancer-like regulation and host factors (IHF and σ54)

XylR binds UAS sites and can act at a distance, often requiring DNA looping and bending. Integration host factor (IHF) is implicated in modulating promoter outputs in the xylR/xylS region, affecting basal and maximal induction behavior. σ54 (RpoN) is essential for Ps1 activity: Ps1 transcription is abolished in σ54-deficient backgrounds. (marques1998activationandrepression pages 1-2, marques1998activationandrepression pages 3-4)

4) Recent developments (prioritizing 2023–2024)

4.1 2023: Water potential controls effector specificity and output

A 2023 Environmental Microbiology study reports that environmental water availability (water potential/humidity) alters XylR-mediated activation and changes effector specificity at the Pu promoter, with effects traceable to conformational changes in the A-domain effector-binding region. The study uses non-disruptive lux reporters and compares wild-type XylR to A-domain variants and to a constitutive xylRΔA background. (dvorak2023waterpotentialgoverns pages 1-2, dvorak2023waterpotentialgoverns pages 5-6)

Key quantitative data from this 2023 study:
- PEG8000-generated water potentials: 0.15, 0.25, 0.50, 0.75 MPa (0, 25, 100, 200 g/L PEG8000). (dvorak2023waterpotentialgoverns pages 4-5)
- PEG8000 treatment caused 20–50% growth reductions in the reported conditions. (dvorak2023waterpotentialgoverns pages 5-6)
- A-domain variant predicted pocket volumes increased vs wild type: WT 225.0 ± 10.0 ų, vs Va 285.8 ± 8.2, V18 268.0 ± 6.2, V101 237.2 ± 9.2 ų (significant expansions for V18/V101, p<0.01). (dvorak2023waterpotentialgoverns pages 8-11)
- Compatible solute glycine betaine can restore activity toward poor effectors under low water potential, consistent with an osmotic/conformational component to signaling. (dvorak2023waterpotentialgoverns pages 6-8)

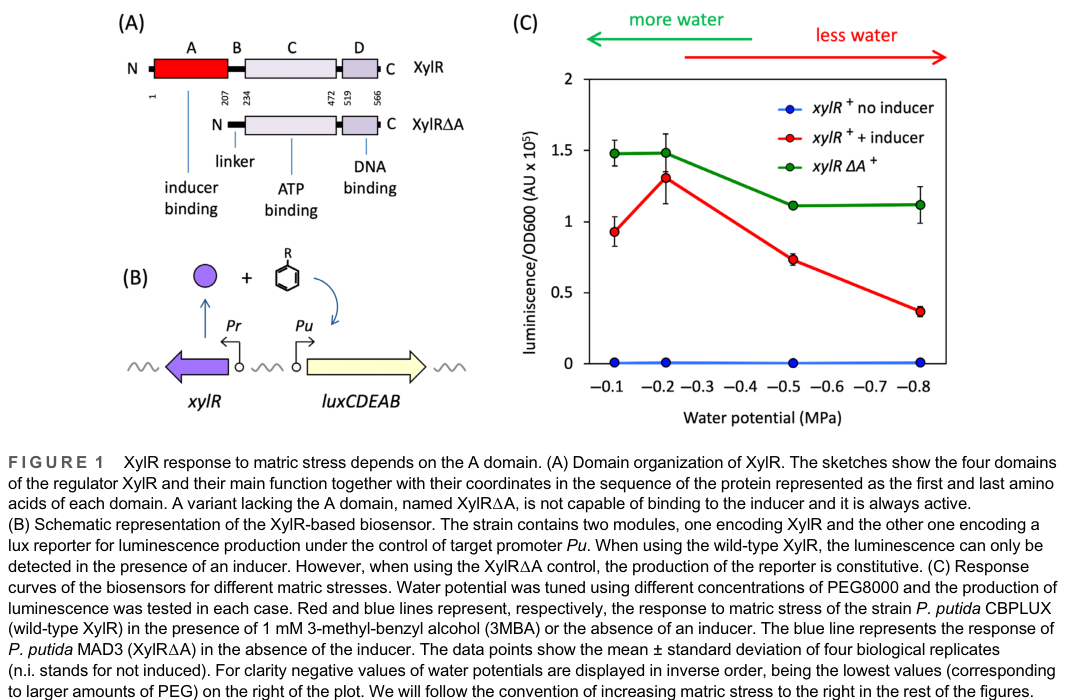

The paper’s Figure 1 schematically links (i) XylR domain structure, (ii) Pu reporter design, and (iii) water-potential effects on Pu output, providing a compact “current view” of this regulatory system under environmental stress. (dvorak2023waterpotentialgoverns media ed53c3c9)

4.2 2024: limited directly citable new primary data in retrieved corpus

Within the retrieved 2024 sources, no additional primary study directly quantifying P. putida XylR (P06519) biosensor performance or structural mechanism was available for citation beyond the 2023 primary study and established mechanistic literature. Therefore, the “latest research” component is anchored primarily by the 2023 primary study above. (dvorak2023waterpotentialgoverns pages 1-2)

5) Current applications and real-world implementations

5.1 Whole-cell biosensing and reporter implementations

XylR’s modular effector-sensing and σ54 activation has made it a common chassis for building whole-cell biosensors for aromatic compounds. In the 2023 study, the practical implementation is explicit: a Pu–luxCDABE reporter in P. putida backgrounds (including variants of the XylR A domain) is used to quantify responses to inducers under environmental water-stress conditions. (dvorak2023waterpotentialgoverns pages 6-8, dvorak2023waterpotentialgoverns pages 4-5, dvorak2023waterpotentialgoverns media ed53c3c9)

5.2 Biodegradation network engineering (systems/synthetic biology context)

At a system level, XylR operates as the upstream regulator that coordinates the TOL catabolic network; modeling and systems descriptions emphasize XylR/XylS interplay and σ54/σ70 promoter layering as a design motif for coordinating long catabolic routes. This architecture underlies many synthetic-biology adaptations where catabolic pathways are re-contextualized into engineered hosts. (tropel2004bacterialtranscriptionalregulators pages 9-10, marques1998activationandrepression pages 1-2)

6) Expert opinions and authoritative analyses

Two highly cited reviews provide authoritative framing:
- Tropel & van der Meer (2004, MMBR) summarize aromatic-pathway regulators, placing XylR among NtrC-family activators that require chemical effectors plus ATP and bind UAS sites to activate σ54 promoters; they also describe the regulatory cascade with XylR activating xylS transcription from σ54 promoter Ps1 while Ps2 provides low basal σ70-driven xylS expression. (tropel2004bacterialtranscriptionalregulators pages 17-18, tropel2004bacterialtranscriptionalregulators pages 9-10)
- Bush & Dixon (2012, MMBR) provide a detailed mechanistic framework for σ54 bEBPs, including modular domain organization and how AAA+ ATPase hexamers remodel the σ54–RNAP complex; XylR is cited as a representative σ54-dependent activator, and XylR mutational evidence (e.g., ATPase-defective mutations) is used to support ATPase function requirements. (bush2012theroleof pages 4-6)

Together, these reviews support a consensus view of XylR as a canonical σ54 bEBP with effector-responsive regulation and ATPase-driven transcriptional activation. (tropel2004bacterialtranscriptionalregulators pages 17-18, bush2012theroleof pages 4-6)

7) Statistics and data highlights (from recent and foundational studies)

• σ54 dependence of Ps1: Ps1 transcription is abolished in σ54 (rpoN) deficient backgrounds; additionally, σ54 deletion caused ~10-fold increase in Ps2 and ~2-fold increases in Pr1/Pr2 in one genetic background examined. (marques1998activationandrepression pages 3-4)
• IHF modulation: In an IHF-deficient strain, effector-dependent induction at Ps1 was reported up to ~20-fold under the described conditions. (marques1998activationandrepression pages 3-4)
• Water potential experiments (2023): defined water potentials 0.15–0.75 MPa, growth reductions 20–50%, and A-domain pocket volume changes (WT vs variants) as above. (dvorak2023waterpotentialgoverns pages 5-6, dvorak2023waterpotentialgoverns pages 4-5, dvorak2023waterpotentialgoverns pages 8-11)

8) Visual evidence (figure)

Figure evidence summarizing domain architecture and reporter implementation is available from the 2023 study: the figure includes XylR A–B–C–D domain organization and Pu-lux reporter schematic and data on water potential effects. (dvorak2023waterpotentialgoverns media ed53c3c9)

Evidence summary table

Table: This table summarizes the experimentally supported functional annotation of XylR (UniProt P06519) in the Pseudomonas putida TOL system, including identity, domains, mechanism, pathway context, localization, and recent 2023 findings. It is useful as a concise evidence map linking each annotation claim to specific gathered context IDs and publication metadata.

References (URLs and publication dates)

• Dvořák P. et al. Environmental Microbiology (published online Jan 2023). “Water potential governs the effector specificity of the transcriptional regulator XylR of Pseudomonas putida.” https://doi.org/10.1111/1462-2920.16342 (dvorak2023waterpotentialgoverns pages 1-2)
• Marqués S. et al. Journal of Bacteriology (Jun 1998). “Activation and Repression of Transcription at the Double Tandem Divergent Promoters for the xylR and xylS Genes…” https://doi.org/10.1128/jb.180.11.2889-2894.1998 (marques1998activationandrepression pages 1-2)
• Bertoni G. et al. Molecular Microbiology (Mar 1997). “Genetic evidence of separate repressor and activator activities of the XylR regulator…” https://doi.org/10.1046/j.1365-2958.1997.3091673.x (bertoni1997geneticevidenceof pages 1-2)
• Garmendia J. & de Lorenzo V. Molecular Microbiology (Oct 2000). “The role of the interdomain B linker in the activation of the XylR protein…” https://doi.org/10.1046/j.1365-2958.2000.02139.x (garmendia2000theroleof pages 1-2)
• Devos D.P. et al. Environmental Microbiology (Jan 2002). “Deciphering the action of aromatic effectors on… XylR…” https://doi.org/10.1046/j.1462-2920.2002.00265.x (devos2002decipheringtheaction pages 1-2)
• Tropel D. & van der Meer J.R. Microbiology and Molecular Biology Reviews (Sep 2004). “Bacterial Transcriptional Regulators for Degradation Pathways of Aromatic Compounds.” https://doi.org/10.1128/mmbr.68.3.474-500.2004 (tropel2004bacterialtranscriptionalregulators pages 18-18)
• Bush M.J. & Dixon R. Microbiology and Molecular Biology Reviews (Sep 2012). “The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription.” https://doi.org/10.1128/mmbr.00006-12 (bush2012theroleof pages 4-6)

Limitations of this synthesis

Some high-value classic primary sources directly quantifying XylR DNA binding footprints, intracellular abundance dynamics, or providing in vitro kinetic constants were listed by the search system but were not obtainable in full text during this run; therefore this report emphasizes the accessible primary studies and authoritative reviews listed above, and does not report binding constants (Kd) or absolute ATPase rates that are not present in the retrieved evidence. (bertoni1997geneticevidenceof pages 1-2, bush2012theroleof pages 4-6)

References

1. (dvorak2023waterpotentialgoverns pages 1-2): Pavel Dvořák, Teca Calcagno Galvão, Katharina Pflüger‐Grau, Alice M. Banks, Víctor de Lorenzo, and Jose I. Jiménez. Water potential governs the effector specificity of the transcriptional regulator xylr of pseudomonas putida. Environmental Microbiology, 25:1041-1054, Jan 2023. URL: https://doi.org/10.1111/1462-2920.16342, doi:10.1111/1462-2920.16342. This article has 2 citations and is from a domain leading peer-reviewed journal.

2. (devos2002decipheringtheaction pages 1-2): Damien P. Devos, J. Garmendia, V. D. Lorenzo, and Alfonso Valencia. Deciphering the action of aromatic effectors on the prokaryotic enhancer-binding protein xylr: a structural model of its n-terminal domain. Environmental microbiology, 4 1:29-41, Jan 2002. URL: https://doi.org/10.1046/j.1462-2920.2002.00265.x, doi:10.1046/j.1462-2920.2002.00265.x. This article has 57 citations and is from a domain leading peer-reviewed journal.

3. (bertoni1997geneticevidenceof pages 1-2): Giovanni Bertoni, Jose Perez‐Martfn, and Victor de Lorenzo. Genetic evidence of separate repressor and activator activities of the xylr regulator of the tol plasmid, pwwo, of pseudomonas putida. Molecular Microbiology, 23:1221-1227, Mar 1997. URL: https://doi.org/10.1046/j.1365-2958.1997.3091673.x, doi:10.1046/j.1365-2958.1997.3091673.x. This article has 28 citations and is from a domain leading peer-reviewed journal.

4. (bush2012theroleof pages 4-6): Matthew J. Bush and R. Dixon. The role of bacterial enhancer binding proteins as specialized activators of σ⁵⁴-dependent transcription. Microbiology and Molecular Biology Reviews, 76:497-529, Sep 2012. URL: https://doi.org/10.1128/mmbr.00006-12, doi:10.1128/mmbr.00006-12. This article has 417 citations and is from a domain leading peer-reviewed journal.

5. (tropel2004bacterialtranscriptionalregulators pages 9-10): David Tropel and Jan Roelof van der Meer. Bacterial transcriptional regulators for degradation pathways of aromatic compounds. Microbiology and Molecular Biology Reviews, 68:474-500, Sep 2004. URL: https://doi.org/10.1128/mmbr.68.3.474-500.2004, doi:10.1128/mmbr.68.3.474-500.2004. This article has 481 citations and is from a domain leading peer-reviewed journal.

6. (garmendia2000theroleof pages 1-2): Junkal Garmendia and Víctor De Lorenzo. The role of the interdomain b linker in the activation of the xylr protein of pseudomonas putida. Molecular Microbiology, 38:401-410, Oct 2000. URL: https://doi.org/10.1046/j.1365-2958.2000.02139.x, doi:10.1046/j.1365-2958.2000.02139.x. This article has 47 citations and is from a domain leading peer-reviewed journal.

7. (dvorak2023waterpotentialgoverns media ed53c3c9): Pavel Dvořák, Teca Calcagno Galvão, Katharina Pflüger‐Grau, Alice M. Banks, Víctor de Lorenzo, and Jose I. Jiménez. Water potential governs the effector specificity of the transcriptional regulator xylr of pseudomonas putida. Environmental Microbiology, 25:1041-1054, Jan 2023. URL: https://doi.org/10.1111/1462-2920.16342, doi:10.1111/1462-2920.16342. This article has 2 citations and is from a domain leading peer-reviewed journal.

8. (marques1998activationandrepression pages 1-2): Silvia Marqués, María-Trinidad Gallegos, Maximino Manzanera, Andreas Holtel, Kenneth N. Timmis, and Juan L. Ramos. Activation and repression of transcription at the double tandem divergent promoters for the xylr and xyls genes of the tol plasmid of pseudomonas putida. Journal of Bacteriology, 180:2889-2894, Jun 1998. URL: https://doi.org/10.1128/jb.180.11.2889-2894.1998, doi:10.1128/jb.180.11.2889-2894.1998. This article has 78 citations and is from a peer-reviewed journal.

9. (dvorak2021anupdatedstructural pages 10-12): Pavel Dvořák, Carlos Alvarez-Carreño, Sergio Ciordia, Alberto Paradela, and Víctor de Lorenzo. An updated structural model of the a domain of the pseudomonas putida xylr regulator exposes a distinct interplay with aromatic effectors. bioRxiv, Jan 2021. URL: https://doi.org/10.1101/2021.01.17.427014, doi:10.1101/2021.01.17.427014. This article has 0 citations.

10. (tropel2004bacterialtranscriptionalregulators pages 17-18): David Tropel and Jan Roelof van der Meer. Bacterial transcriptional regulators for degradation pathways of aromatic compounds. Microbiology and Molecular Biology Reviews, 68:474-500, Sep 2004. URL: https://doi.org/10.1128/mmbr.68.3.474-500.2004, doi:10.1128/mmbr.68.3.474-500.2004. This article has 481 citations and is from a domain leading peer-reviewed journal.

11. (bertoni1997geneticevidenceof pages 4-5): Giovanni Bertoni, Jose Perez‐Martfn, and Victor de Lorenzo. Genetic evidence of separate repressor and activator activities of the xylr regulator of the tol plasmid, pwwo, of pseudomonas putida. Molecular Microbiology, 23:1221-1227, Mar 1997. URL: https://doi.org/10.1046/j.1365-2958.1997.3091673.x, doi:10.1046/j.1365-2958.1997.3091673.x. This article has 28 citations and is from a domain leading peer-reviewed journal.

12. (marques1998activationandrepression pages 3-4): Silvia Marqués, María-Trinidad Gallegos, Maximino Manzanera, Andreas Holtel, Kenneth N. Timmis, and Juan L. Ramos. Activation and repression of transcription at the double tandem divergent promoters for the xylr and xyls genes of the tol plasmid of pseudomonas putida. Journal of Bacteriology, 180:2889-2894, Jun 1998. URL: https://doi.org/10.1128/jb.180.11.2889-2894.1998, doi:10.1128/jb.180.11.2889-2894.1998. This article has 78 citations and is from a peer-reviewed journal.

13. (dvorak2023waterpotentialgoverns pages 5-6): Pavel Dvořák, Teca Calcagno Galvão, Katharina Pflüger‐Grau, Alice M. Banks, Víctor de Lorenzo, and Jose I. Jiménez. Water potential governs the effector specificity of the transcriptional regulator xylr of pseudomonas putida. Environmental Microbiology, 25:1041-1054, Jan 2023. URL: https://doi.org/10.1111/1462-2920.16342, doi:10.1111/1462-2920.16342. This article has 2 citations and is from a domain leading peer-reviewed journal.

14. (dvorak2023waterpotentialgoverns pages 4-5): Pavel Dvořák, Teca Calcagno Galvão, Katharina Pflüger‐Grau, Alice M. Banks, Víctor de Lorenzo, and Jose I. Jiménez. Water potential governs the effector specificity of the transcriptional regulator xylr of pseudomonas putida. Environmental Microbiology, 25:1041-1054, Jan 2023. URL: https://doi.org/10.1111/1462-2920.16342, doi:10.1111/1462-2920.16342. This article has 2 citations and is from a domain leading peer-reviewed journal.

15. (dvorak2023waterpotentialgoverns pages 8-11): Pavel Dvořák, Teca Calcagno Galvão, Katharina Pflüger‐Grau, Alice M. Banks, Víctor de Lorenzo, and Jose I. Jiménez. Water potential governs the effector specificity of the transcriptional regulator xylr of pseudomonas putida. Environmental Microbiology, 25:1041-1054, Jan 2023. URL: https://doi.org/10.1111/1462-2920.16342, doi:10.1111/1462-2920.16342. This article has 2 citations and is from a domain leading peer-reviewed journal.

16. (dvorak2023waterpotentialgoverns pages 6-8): Pavel Dvořák, Teca Calcagno Galvão, Katharina Pflüger‐Grau, Alice M. Banks, Víctor de Lorenzo, and Jose I. Jiménez. Water potential governs the effector specificity of the transcriptional regulator xylr of pseudomonas putida. Environmental Microbiology, 25:1041-1054, Jan 2023. URL: https://doi.org/10.1111/1462-2920.16342, doi:10.1111/1462-2920.16342. This article has 2 citations and is from a domain leading peer-reviewed journal.

17. (garmendia2000theroleof pages 3-4): Junkal Garmendia and Víctor De Lorenzo. The role of the interdomain b linker in the activation of the xylr protein of pseudomonas putida. Molecular Microbiology, 38:401-410, Oct 2000. URL: https://doi.org/10.1046/j.1365-2958.2000.02139.x, doi:10.1046/j.1365-2958.2000.02139.x. This article has 47 citations and is from a domain leading peer-reviewed journal.

18. (garmendia2000theroleof pages 10-10): Junkal Garmendia and Víctor De Lorenzo. The role of the interdomain b linker in the activation of the xylr protein of pseudomonas putida. Molecular Microbiology, 38:401-410, Oct 2000. URL: https://doi.org/10.1046/j.1365-2958.2000.02139.x, doi:10.1046/j.1365-2958.2000.02139.x. This article has 47 citations and is from a domain leading peer-reviewed journal.

19. (tropel2004bacterialtranscriptionalregulators pages 18-18): David Tropel and Jan Roelof van der Meer. Bacterial transcriptional regulators for degradation pathways of aromatic compounds. Microbiology and Molecular Biology Reviews, 68:474-500, Sep 2004. URL: https://doi.org/10.1128/mmbr.68.3.474-500.2004, doi:10.1128/mmbr.68.3.474-500.2004. This article has 481 citations and is from a domain leading peer-reviewed journal.

Artifacts

• Edison artifact artifact-00


Citations

1. bush2012theroleof pages 4-6
2. marques1998activationandrepression pages 1-2
3. bertoni1997geneticevidenceof pages 4-5
4. dvorak2023waterpotentialgoverns pages 4-5
5. dvorak2023waterpotentialgoverns pages 5-6
6. dvorak2023waterpotentialgoverns pages 8-11
7. dvorak2023waterpotentialgoverns pages 6-8
8. dvorak2023waterpotentialgoverns pages 1-2
9. marques1998activationandrepression pages 3-4
10. bertoni1997geneticevidenceof pages 1-2
11. garmendia2000theroleof pages 1-2
12. devos2002decipheringtheaction pages 1-2
13. tropel2004bacterialtranscriptionalregulators pages 18-18
14. tropel2004bacterialtranscriptionalregulators pages 9-10
15. dvorak2021anupdatedstructural pages 10-12
16. tropel2004bacterialtranscriptionalregulators pages 17-18
17. garmendia2000theroleof pages 3-4
18. garmendia2000theroleof pages 10-10
19. https://doi.org/10.1111/1462-2920.16342;
20. https://doi.org/10.1046/j.1462-2920.2002.00265.x;
21. https://doi.org/10.1046/j.1365-2958.1997.3091673.x
22. https://doi.org/10.1128/jb.180.11.2889-2894.1998
23. https://doi.org/10.1046/j.1365-2958.2000.02139.x;
24. https://doi.org/10.1111/1462-2920.16342
25. https://doi.org/10.1046/j.1365-2958.2000.02139.x
26. https://doi.org/10.1046/j.1365-2958.1997.3091673.x;
27. https://doi.org/10.1128/mmbr.68.3.474-500.2004;
28. https://doi.org/10.1128/mmbr.00006-12;
29. https://doi.org/10.1128/jb.180.11.2889-2894.1998;
30. https://doi.org/10.1046/j.1462-2920.2002.00265.x
31. https://doi.org/10.1128/mmbr.68.3.474-500.2004
32. https://doi.org/10.1128/mmbr.00006-12
33. https://doi.org/10.1111/1462-2920.16342,
34. https://doi.org/10.1046/j.1462-2920.2002.00265.x,
35. https://doi.org/10.1046/j.1365-2958.1997.3091673.x,
36. https://doi.org/10.1128/mmbr.00006-12,
37. https://doi.org/10.1128/mmbr.68.3.474-500.2004,
38. https://doi.org/10.1046/j.1365-2958.2000.02139.x,
39. https://doi.org/10.1128/jb.180.11.2889-2894.1998,
40. https://doi.org/10.1101/2021.01.17.427014,

Overview and Key Functions of XylR

XylR (UniProt P06519) is a 67-kDa transcriptional regulatory protein in Pseudomonas putida that controls the breakdown of aromatic hydrocarbons. It belongs to the NtrC family of σ^54-dependent enhancer-binding proteins (EBPs), meaning it uses an ATP-driven mechanism to activate transcription from specific promoters (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). XylR is the master regulator of the TOL plasmid pWW0 upper pathway, which governs the initial oxidative catabolism of toluene and xylenes (pmc.ncbi.nlm.nih.gov). In the presence of its effector molecules (toluene, m-xylene, p-xylene, or related aromatic analogues), XylR binds the target promoter (called Pu) and triggers expression of enzymes that convert those aromatics into benzoate derivatives (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). This allows P. putida to grow on toluene and xylenes as carbon sources, making XylR a pivotal factor in the bacterium’s ability to degrade environmental pollutants (pmc.ncbi.nlm.nih.gov). Notably, XylR requires both the protein and the inducer to be present for activation – effectively implementing an AND-gate logic for pathway induction (pmc.ncbi.nlm.nih.gov). This tight control prevents unnecessary expression of catabolic genes in the absence of substrate. XylR also positively regulates the xylS gene (from the Pu-related promoter Ps1) when aromatics are present, linking the “upper” pathway to the “meta” pathway for complete mineralization of the compounds (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). In summary, XylR’s primary biological role is to sense aromatic solvents and activate a transcriptional program for their metabolism, a function central to P. putida’s biodegradation and environmental adaptability (pmc.ncbi.nlm.nih.gov).

Mechanism and Structure of XylR

Domain Architecture: XylR is a multi-domain protein with a modular design common to σ^54 EBPs. It contains: (1) an N-terminal regulatory domain (also called the A domain) that serves as an effector-binding sensor, (2) a central AAA⁺ ATPase domain responsible for oligomerization and energy coupling, and (3) a C-terminal DNA-binding domain with a helix-turn-helix motif for binding upstream activation sequences on DNA (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). The N-terminal sensor of XylR belongs to the “V4R” (vinyl-4-reductase) family of ligand-binding domains and specifically recognizes small aromatic compounds (pmc.ncbi.nlm.nih.gov). Binding of toluene or m-/p-xylene at this domain induces a conformational change that relieves an intramolecular repression* on the central ATPase domain (pubmed.ncbi.nlm.nih.gov). In the absence of effectors, the A-domain maintains XylR in an inactive state by contacting and occluding surfaces of the catalytic domain (pubmed.ncbi.nlm.nih.gov). Once an aromatic effector is bound, the N-terminal domain releases its “brake” on the central domain (pubmed.ncbi.nlm.nih.gov), allowing XylR subunits to assemble into an active oligomer.

Activator Complex and σ^54 Interaction: Active XylR functions as a hexameric ring (typical of AAA⁺ EBPs) that binds to enhancer sites on the DNA and stimulates transcription initiation (pmc.ncbi.nlm.nih.gov). XylR binds specific upstream activation sequences (UAS) located ~150 bp upstream of the σ^54-dependent Pu promoter (pubmed.ncbi.nlm.nih.gov). There are two such UAS sites (proximal and distal), and XylR often binds as dimers to these sites. Upon effector activation, multiple DNA-bound XylR dimers oligomerize into a hexamer, forming a DNA-looped complex (often facilitated by the DNA-bending protein IHF in P. putida) (pubmed.ncbi.nlm.nih.gov). The XylR hexamer then uses energy from ATP hydrolysis to interact with the σ^54–RNA polymerase holoenzyme positioned at the Pu promoter (pmc.ncbi.nlm.nih.gov). A conserved amino acid motif (e.g. GAFTGA loop in the AAA⁺ domain) makes contact with σ^54, helping to remodel the closed promoter complex into an open transcriptionally active complex (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). Through this ATP-dependent mechanism, XylR effectively unlocks the promoter, enabling RNA polymerase to initiate transcription of the downstream catabolic genes.

Experimental evidence: Mutational studies strongly support this mechanism. For example, deletion of XylR’s N-terminal domain produces a constitutively active protein that can activate Pu even without any aromatic inducer (pubmed.ncbi.nlm.nih.gov). Point mutations in the inter-domain linker (e.g. introducing a proline kink) also yield “semi-constitutive” XylR variants, mimicking the effect of inducer binding by destabilizing the repressive interaction between domains (pubmed.ncbi.nlm.nih.gov) (pubmed.ncbi.nlm.nih.gov). Conversely, mutations in the ATP-binding motifs of the AAA⁺ domain (e.g. Walker motifs) abolish XylR’s ability to hydrolyze ATP and activate transcription (pmc.ncbi.nlm.nih.gov). These findings confirm that (1) the N-terminal domain normally imposes autoinhibition, and (2) ATP-driven hexamerization is essential for XylR’s transcriptional activation function.

Subcellular localization: XylR carries out its function in the bacterial cytoplasm, specifically associated with the nucleoid DNA where its target promoters reside. As a DNA-binding transcription factor, XylR is not membrane-bound or secreted; it diffuses in the cytosol and binds to the TOL plasmid’s Pu promoter region when activated. Recent single-cell studies of P. putida revealed that after XylR activates transcription, the resulting xyl mRNAs form distinct foci in the cytoplasm, co-localizing with ribosome-rich regions away from the nucleoid (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). This suggests that transcription of XylR-regulated genes occurs at the nucleoid, but the transcripts quickly relocate to translation zones in the cell. Such spatial organization may enhance efficient translation of the catabolic enzymes, although XylR itself remains DNA-bound only transiently during activation cycles (pubmed.ncbi.nlm.nih.gov). In sum, XylR operates within the cell’s interior, bridging the genomic DNA (plasmid promoter) and the transcriptional machinery in an ATP-dependent manner, with tightly controlled timing and localization.

Regulation of XylR Expression and Activity

Autoregulation: The xylR gene is part of a divergently transcribed regulatory region together with xylS. XylR regulates its own expression by negative feedback. It binds to its own promoter region to repress transcription of xylR, maintaining relatively constant XylR protein levels whether inducer is present or not (pmc.ncbi.nlm.nih.gov). This autoregulatory loop prevents excessive accumulation of XylR. Interestingly, studies have shown that XylR levels change very little upon addition of m-xylene (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). By keeping itself at a steady concentration, XylR ensures a swift and proportionate response to inducers without runaway expression. At the same time, XylR’s divergent neighbor xylS has a σ^54-dependent promoter (Ps1) that XylR activates in the presence of aromatic effectors (pmc.ncbi.nlm.nih.gov). Thus, when XylR is induced by toluene/xylenes, it not only turns on the catabolic enzymes but also boosts xylS output (which in turn will activate the downstream meta-cleavage enzymes). This forms a feed-forward cascade: XylR → xylS → meta-operon, tightly coordinating the two stages of toluene/xylene degradation (pmc.ncbi.nlm.nih.gov). Notably, XylR’s binding sites for self-repression and for xylS activation overlap in the intergenic region, and XylR can simultaneously repress its own promoter while activating xylS under inducing conditions (pmc.ncbi.nlm.nih.gov). This elegant arrangement guarantees that XylR is present in sufficient amount but not overproduced, and that xylS (and thus the lower pathway) is induced only when the upper pathway has been triggered.

Global and physiological regulation: Beyond its own promoter, XylR activity is modulated by global carbon availability and other host factors. P. putida employs a catabolite repression-like mechanism involving the Crc protein, which post-transcriptionally inhibits XylR production when preferred carbon sources are abundant (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). Specifically, Crc (together with a small RNA) can bind the xylR mRNA, blocking its translation under nutrient-rich conditions (pmc.ncbi.nlm.nih.gov). This means that if easily metabolizable substrates (e.g. succinate or glucose) are present, the cell suppresses XylR synthesis, thereby preventing unwarranted expression of toluene/xylene degradation genes. Once the preferred carbon is depleted and an aromatic pollutant is the main carbon source, Crc-mediated repression lifts and XylR protein accumulates to activate the Pu pathway. In addition to Crc, several other global regulators and environmental signals feed into the XylR/Pu system. For example, the DNA-bending protein IHF (Integration Host Factor) binds near the Pu promoter and can affect XylR’s ability to initiate transcription, especially in stationary phase cells (pubmed.ncbi.nlm.nih.gov). Alternative sigma factors (σ^70, σ^38 for stationary phase, etc.) and alarmone signaling (ppGpp) also indirectly influence the Pu promoter’s responsiveness (pmc.ncbi.nlm.nih.gov). However, under standard inducing conditions (e.g. minimal media with m-xylene as sole carbon), these host factors are tuned such that XylR-Pu operates at optimal capacity (pmc.ncbi.nlm.nih.gov). Experimental evidence underscores some of these controls: for instance, by growing cells in defined medium without amino acids (removing catabolite repression), one can derepress xylR translation and observe a stronger Pu induction response (pmc.ncbi.nlm.nih.gov). In summary, P. putida tightly regulates XylR at multiple levels – DNA (autogenous repression), RNA (Crc-mediated translational control), and protein activity (effector binding requirement and possibly protein–protein interactions) – to integrate the presence of aromatic compounds with the cell’s nutritional status and stress conditions.

Biotechnological Applications and Recent Developments

Biodegradation and environmental impact: XylR plays a crucial role in bioremediation of toxic aromatic pollutants. The TOL plasmid systems endowed with XylR allow Pseudomonas putida to consume compounds like toluene, xylenes, and benzene (collectively part of BTEX contaminants) in soil and water environments (pmc.ncbi.nlm.nih.gov). Because XylR ensures that catabolic enzymes are produced only in the presence of the target pollutants, it makes P. putida an efficient and safe biodegradation agent – energy is not wasted expressing these pathways unless the pollutant is present. The significance of XylR is highlighted by the fact that it has become a model system for aromatic hydrocarbon sensing in bacteria (pmc.ncbi.nlm.nih.gov). Assinder and Williams (1990) noted that mutants lacking functional XylR cannot grow on toluene or m-xylene, underscoring that XylR is essential for activating the upstream pathways that funnel these compounds into central metabolism (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). In natural settings, XylR-regulated pathways contribute to the natural attenuation of oil-derived pollutants.

Synthetic biology and biosensors: The highly specific yet inducible nature of XylR has been leveraged to create biosensors for environmental monitoring. Researchers have used XylR and the Pu promoter as a basis for detecting aromatic compounds (the presence of an analyte triggers reporter gene expression via XylR). Notably, XylR’s innate ligand range is quite broad – it responds not only to toluene and xylenes but also to a “surprising variety of structural analogs,” including other alkylbenzenes (pmc.ncbi.nlm.nih.gov). This versatility was exploited to construct biosensors for BTEX compounds (benzene, toluene, ethylbenzene, xylene), which are common groundwater contaminants from petroleum (pmc.ncbi.nlm.nih.gov). Biosensor strains or devices using XylR can thus light up (for example, produce fluorescence) in the presence of these pollutants, enabling detection of contamination in situ (pmc.ncbi.nlm.nih.gov). Moreover, P. putida harboring the XylR circuit has been tested in field settings to report on soil pollutant levels (pmc.ncbi.nlm.nih.gov).

Researchers have also engineered XylR for expanded or altered specificity. For instance, de Lorenzo’s group created XylR mutants that can sense nitroaromatic compounds (such as 2,4-dinitrotoluene, a component of TNT) which are not natural effectors of wild-type XylR (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). One exciting application of this was the development of bacterial sensors for landmines: an XylR variant was designed to detect trace nitrotoluene leaching from buried explosives, triggering a visible reporter as a “landmine detector” (pmc.ncbi.nlm.nih.gov). This showcases the adaptability of XylR’s sensing domain – a few amino acid changes can retarget it to new chemicals. Additionally, synthetic circuit design has combined XylR with logic gates to create more complex regulatory behaviors. By rewiring XylR production or coupling it with other signals, researchers achieved Boolean logic operations in Pseudomonas: for example, XylR-based circuits that require two conditions to be met (multi-input AND gates) or that display enhanced specificity to one aromatic over similar compounds (pmc.ncbi.nlm.nih.gov). One study generated XylR mutants with reduced promiscuity, so that the sensor would respond to a specific pollutant without cross-reacting to others, thereby “overcoming the natural promiscuity of XylR” (pmc.ncbi.nlm.nih.gov). These advances, including rational protein engineering and domain shuffling, have made XylR a versatile platform for biosensor development (pmc.ncbi.nlm.nih.gov). As of 2023, XylR remains of interest not only for its classic role in biodegradation but also as a template for designing custom microbial regulators in environmental biotechnology.

Current research directions: The XylR/Pu regulatory module continues to be studied as a paradigm of complex gene regulation. Modern systems biology approaches have modeled the TOL network as a metabolic amplifier circuit, describing how XylR and XylS create a robust two-tier response that optimizes m-xylene degradation (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). Advanced microscopy has provided new insight into the spatial dynamics of XylR-regulated gene expression, revealing that transcripts from XylR-activated operons are not randomly distributed but rather concentrate at specific cytoplasmic foci for efficient translation (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov). There is also interest in structural biology of XylR: while no full crystal structure is available yet (due to the difficulty of such large, flexible proteins), computational modeling of XylR’s N-terminal domain has been performed to understand how aromatic effectors bind and cause allosteric changes (pmc.ncbi.nlm.nih.gov). Comparisons with its close homolog DmpR (which shares ~65% identity) are helping to pinpoint the amino acid differences that determine ligand specificity (pmc.ncbi.nlm.nih.gov). Together, these efforts contribute to a current understanding of XylR as not just a singular protein, but as part of an integrated network that senses the environment, regulates a catabolic pathway, and interfaces with the cell’s physiology. Given its importance in pollution degradation and its amenability to engineering, XylR is likely to remain a focus of both fundamental and applied research, bridging microbiology, ecology, and synthetic biology.

References:

• Marc Valls & Víctor de Lorenzo (2003). Nucleic Acids Res, 31(23):6926-34. DOI:10.1093/nar/gkg912 (pubmed.ncbi.nlm.nih.gov).
• S. Fernández, V. de Lorenzo, J. Pérez-Martín (1995). Mol. Microbiol., 16(2):205-213. DOI:10.1111/j.1365-2958.1995.tb02293.x (pubmed.ncbi.nlm.nih.gov).
• Rafael Silva-Rocha et al. (2011). BMC Syst Biol, 5:191. DOI:10.1186/1752-0509-5-191 (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov).
• Matthew J. Bush & Ray Dixon (2012). Microbiol. Mol. Biol. Rev., 76(3):497-529. DOI:10.1128/MMBR.00006-12 (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov).
• Juhyun Kim et al. (2021). mBio, 12(1):e03685-20. DOI:10.1128/mBio.03685-20 (pmc.ncbi.nlm.nih.gov).
• Raúl Fernández-López et al. (2015). Front. Microbiol., 6:648. DOI:10.3389/fmicb.2015.00648 (pmc.ncbi.nlm.nih.gov) (pmc.ncbi.nlm.nih.gov).

Citations

1. AnnotationURLCitation(end_index=482, start_index=362, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=XylR%20%20,76%20%2C%20%2064%2C%20162')
2. AnnotationURLCitation(end_index=661, start_index=483, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=Summary%3A%20Bacterial%20enhancer%20binding%20proteins,of%20the%20central%20catalytic%20domain')
3. AnnotationURLCitation(end_index=927, start_index=807, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=XylR%20%20,76%20%2C%20%2064%2C%20162')
4. AnnotationURLCitation(end_index=1341, start_index=1174, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=expression%20of%20the%20dmp%20operon%2C,on%20toluene%20and%20related%20hydrocarbons')
5. AnnotationURLCitation(end_index=1481, start_index=1342, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=substrate%20is%20available%20,This%20factor%20has%20the')
6. AnnotationURLCitation(end_index=1820, start_index=1653, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=expression%20of%20the%20dmp%20operon%2C,on%20toluene%20and%20related%20hydrocarbons')
7. AnnotationURLCitation(end_index=2133, start_index=1980, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=As%20shown%20in%20Figure%201,Unlike%20Pu%2C%20however%2C%20a%20second')
8. AnnotationURLCitation(end_index=2592, start_index=2439, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=As%20shown%20in%20Figure%201,Unlike%20Pu%2C%20however%2C%20a%20second')
9. AnnotationURLCitation(end_index=2737, start_index=2593, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=two%20series%20of%20biotransformations,or%20in%20combination')
10. AnnotationURLCitation(end_index=3095, start_index=2959, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=Several%20NtrC,was%20also%20engineered%20to%20detect')
11. AnnotationURLCitation(end_index=3702, start_index=3582, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=XylR%20%20,76%20%2C%20%2064%2C%20162')
12. AnnotationURLCitation(end_index=3818, start_index=3703, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=XylR%20%20,76%2C%20161%2C%20162')
13. AnnotationURLCitation(end_index=4114, start_index=3977, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=Other%20%CF%83,XylR%20and%20DmpR%20proteins%20confirm')
14. AnnotationURLCitation(end_index=4425, start_index=4276, title='Activation of the transcriptional regulator XylR of Pseudomonas putida by release of repression between functional domains - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/7565083/#:~:text=in%20a%20hybrid%20protein%20still,located%20at%20the%20central%20domain')
15. AnnotationURLCitation(end_index=4694, start_index=4566, title='Activation of the transcriptional regulator XylR of Pseudomonas putida by release of repression between functional domains - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/7565083/#:~:text=the%20signal,located%20at%20the%20central%20domain')
16. AnnotationURLCitation(end_index=4946, start_index=4797, title='Activation of the transcriptional regulator XylR of Pseudomonas putida by release of repression between functional domains - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/7565083/#:~:text=in%20a%20hybrid%20protein%20still,located%20at%20the%20central%20domain')
17. AnnotationURLCitation(end_index=5387, start_index=5209, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=Summary%3A%20Bacterial%20enhancer%20binding%20proteins,of%20the%20central%20catalytic%20domain')
18. AnnotationURLCitation(end_index=5678, start_index=5508, title='Transient XylR binding to the UAS of the Pseudomonas putida sigma54 promoter Pu revealed with high intensity UV footprinting in vivo - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/14627825/#:~:text=The%20binding%20of%20the%20transcriptional,vivo%20genomic%20footprinting%20procedure%20that')
19. AnnotationURLCitation(end_index=6082, start_index=5959, title='Transient XylR binding to the UAS of the Pseudomonas putida sigma54 promoter Pu revealed with high intensity UV footprinting in vivo - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/14627825/#:~:text=XylR%20protein%20is%20not%20permanently,Only')
20. AnnotationURLCitation(end_index=6398, start_index=6220, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=Summary%3A%20Bacterial%20enhancer%20binding%20proteins,of%20the%20central%20catalytic%20domain')
21. AnnotationURLCitation(end_index=6754, start_index=6600, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=activators%20that%20assemble%20as%20hexameric,54%7D%20for%20remodeling')
22. AnnotationURLCitation(end_index=6922, start_index=6755, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=expression%20of%20the%20dmp%20operon%2C,on%20toluene%20and%20related%20hydrocarbons')
23. AnnotationURLCitation(end_index=7440, start_index=7316, title='Activation of the transcriptional regulator XylR of Pseudomonas putida by release of repression between functional domains - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/7565083/#:~:text=inducers,the%20release%20of%20the%20repression')
24. AnnotationURLCitation(end_index=7822, start_index=7665, title='Activation of the transcriptional regulator XylR of Pseudomonas putida by release of repression between functional domains - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/7565083/#:~:text=regulatory%20protein%20XylR%2C%20of%20the,of%20the%20protein%20stimulated%20the')
25. AnnotationURLCitation(end_index=7949, start_index=7823, title='Activation of the transcriptional regulator XylR of Pseudomonas putida by release of repression between functional domains - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/7565083/#:~:text=between%20the%20N,extent%20in%20vivo%20as%20XylR')
26. AnnotationURLCitation(end_index=8275, start_index=8117, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=match%20at%20L473%20XylR%2C%20the,mutagenesis%20of%20the%20key%20aspartate')
27. AnnotationURLCitation(end_index=9177, start_index=9026, title='Subcellular Architecture of the xyl Gene Expression Flow of the TOL Catabolic Plasmid of Pseudomonas putida mt-2 - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC8545136/#:~:text=flow%20remains%20unknown,based%20system%2C%20which%20likewise%20led')
28. AnnotationURLCitation(end_index=9342, start_index=9178, title='Subcellular Architecture of the xyl Gene Expression Flow of the TOL Catabolic Plasmid of Pseudomonas putida mt-2 - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC8545136/#:~:text=signals%20stemming%20from%20xylUW%20or,were%20separately%20recorded%20with%20the')
29. AnnotationURLCitation(end_index=9786, start_index=9663, title='Transient XylR binding to the UAS of the Pseudomonas putida sigma54 promoter Pu revealed with high intensity UV footprinting in vivo - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/14627825/#:~:text=XylR%20protein%20is%20not%20permanently,Only')
30. AnnotationURLCitation(end_index=10502, start_index=10372, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=the%20mechanism%20for%20regulation%20of,xylene')
31. AnnotationURLCitation(end_index=10774, start_index=10666, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=the%20XylR%20auto,xylene')
32. AnnotationURLCitation(end_index=10905, start_index=10775, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=the%20mechanism%20for%20regulation%20of,xylene')
33. AnnotationURLCitation(end_index=11337, start_index=11185, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=inputs%20are%20strictly%20necessary%20to,XylS%20bound%20to%203%20MBz')
34. AnnotationURLCitation(end_index=11805, start_index=11661, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=two%20series%20of%20biotransformations,or%20in%20combination')
35. AnnotationURLCitation(end_index=12150, start_index=12020, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=the%20mechanism%20for%20regulation%20of,xylene')
36. AnnotationURLCitation(end_index=12811, start_index=12691, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=global%20regulators%20,27%20%2C%2036')
37. AnnotationURLCitation(end_index=12965, start_index=12812, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=physiological%20conditions%2C%20these%20default%20connections,35%2C28')
38. AnnotationURLCitation(end_index=13248, start_index=13095, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=physiological%20conditions%2C%20these%20default%20connections,35%2C28')
39. AnnotationURLCitation(end_index=14058, start_index=13935, title='Transient XylR binding to the UAS of the Pseudomonas putida sigma54 promoter Pu revealed with high intensity UV footprinting in vivo - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/14627825/#:~:text=XylR%20protein%20is%20not%20permanently,Only')
40. AnnotationURLCitation(end_index=14346, start_index=14216, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=,acids%20and%20other%20repressive%20substrates')
41. AnnotationURLCitation(end_index=14672, start_index=14519, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=physiological%20conditions%2C%20these%20default%20connections,35%2C28')
42. AnnotationURLCitation(end_index=15070, start_index=14917, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=physiological%20conditions%2C%20these%20default%20connections,35%2C28')
43. AnnotationURLCitation(end_index=15924, start_index=15788, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=Several%20NtrC,was%20also%20engineered%20to%20detect')
44. AnnotationURLCitation(end_index=16447, start_index=16311, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=Several%20NtrC,was%20also%20engineered%20to%20detect')
45. AnnotationURLCitation(end_index=16824, start_index=16684, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=by%20this%20bacterium%20as%20a,This%20factor%20has%20the')
46. AnnotationURLCitation(end_index=16992, start_index=16825, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=expression%20of%20the%20dmp%20operon%2C,on%20toluene%20and%20related%20hydrocarbons')
47. AnnotationURLCitation(end_index=17752, start_index=17616, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=Several%20NtrC,was%20also%20engineered%20to%20detect')
48. AnnotationURLCitation(end_index=18070, start_index=17931, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=toluene%20and%20m,Heras%20and%20de%20Lorenzo%2C%202011a')
49. AnnotationURLCitation(end_index=18386, start_index=18247, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=toluene%20and%20m,Heras%20and%20de%20Lorenzo%2C%202011a')
50. AnnotationURLCitation(end_index=18645, start_index=18506, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=toluene%20and%20m,Heras%20and%20de%20Lorenzo%2C%202011a')
51. AnnotationURLCitation(end_index=19050, start_index=18921, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=,the%20implementation%20of%20simple%20Boolean')
52. AnnotationURLCitation(end_index=19183, start_index=19051, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=,attractive%20TF%20for%20biosensor%20development')
53. AnnotationURLCitation(end_index=19550, start_index=19420, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=oil%20industry,turned%20XylR%20into%20a%20most')
54. AnnotationURLCitation(end_index=20229, start_index=20097, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=,attractive%20TF%20for%20biosensor%20development')
55. AnnotationURLCitation(end_index=20588, start_index=20434, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=%28Garmendia%20et%20al,attractive%20TF%20for%20biosensor%20development')
56. AnnotationURLCitation(end_index=20865, start_index=20733, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=,attractive%20TF%20for%20biosensor%20development')
57. AnnotationURLCitation(end_index=21515, start_index=21383, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=metabolic%20amplifier%20motif%20%28MAM%29,xylene')
58. AnnotationURLCitation(end_index=21663, start_index=21516, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=As%20shown%20in%20Figure%201,low%20amount%20of%20XylS%20protein')
59. AnnotationURLCitation(end_index=22084, start_index=21933, title='Subcellular Architecture of the xyl Gene Expression Flow of the TOL Catabolic Plasmid of Pseudomonas putida mt-2 - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC8545136/#:~:text=flow%20remains%20unknown,based%20system%2C%20which%20likewise%20led')
60. AnnotationURLCitation(end_index=22249, start_index=22085, title='Subcellular Architecture of the xyl Gene Expression Flow of the TOL Catabolic Plasmid of Pseudomonas putida mt-2 - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC8545136/#:~:text=signals%20stemming%20from%20xylUW%20or,were%20separately%20recorded%20with%20the')
61. AnnotationURLCitation(end_index=22747, start_index=22557, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=action%20of%20aromatic%20effectors%20on,2920.2002.00265.x%20%5BDOI%5D%20%5BPubMed%5D%20%5BGoogle%20Scholar')
62. AnnotationURLCitation(end_index=23006, start_index=22903, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=Another%20NtrC,2000')
63. AnnotationURLCitation(end_index=23714, start_index=23591, title='Transient XylR binding to the UAS of the Pseudomonas putida sigma54 promoter Pu revealed with high intensity UV footprinting in vivo - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/14627825/#:~:text=XylR%20protein%20is%20not%20permanently,Only')
64. AnnotationURLCitation(end_index=23978, start_index=23850, title='Activation of the transcriptional regulator XylR of Pseudomonas putida by release of repression between functional domains - PubMed', type='url_citation', url='https://pubmed.ncbi.nlm.nih.gov/7565083/#:~:text=the%20signal,located%20at%20the%20central%20domain')
65. AnnotationURLCitation(end_index=24229, start_index=24076, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=As%20shown%20in%20Figure%201,Unlike%20Pu%2C%20however%2C%20a%20second')
66. AnnotationURLCitation(end_index=24380, start_index=24230, title='The logic layout of the TOL network of Pseudomonas putida pWW0 plasmid stems from a metabolic amplifier motif (MAM) that optimizes biodegradation of m-xylene - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3253710/#:~:text=substrate%20is%20available%20,promoter%20Pm%20either%20by%20itself')
67. AnnotationURLCitation(end_index=24617, start_index=24497, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=XylR%20%20,76%20%2C%20%2064%2C%20162')
68. AnnotationURLCitation(end_index=24785, start_index=24618, title='The Role of Bacterial Enhancer Binding Proteins as Specialized Activators of σ54-Dependent Transcription - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC3429621/#:~:text=expression%20of%20the%20dmp%20operon%2C,on%20toluene%20and%20related%20hydrocarbons')
69. AnnotationURLCitation(end_index=25025, start_index=24874, title='Subcellular Architecture of the xyl Gene Expression Flow of the TOL Catabolic Plasmid of Pseudomonas putida mt-2 - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC8545136/#:~:text=flow%20remains%20unknown,based%20system%2C%20which%20likewise%20led')
70. AnnotationURLCitation(end_index=25266, start_index=25130, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=Several%20NtrC,was%20also%20engineered%20to%20detect')
71. AnnotationURLCitation(end_index=25399, start_index=25267, title='Transcription factor-based biosensors enlightened by the analyte - PMC', type='url_citation', url='https://pmc.ncbi.nlm.nih.gov/articles/PMC4486848/#:~:text=,attractive%20TF%20for%20biosensor%20development')
