znfx-1

UniProt ID: E9P860
Organism: Caenorhabditis elegans
Review Status: COMPLETE
๐Ÿ“ Provide Detailed Feedback

Gene Description

ZNFX-1 is a conserved NFX1-type zinc finger-containing RNA helicase that is the defining component of Z granules, a class of liquid-like condensates distinct from P granules. ZNFX-1 functions as a dedicated transgenerational RNAi inheritance factor, required for transmitting small RNA-mediated gene silencing signals across generations. The protein localizes to perinuclear nuage where it interacts with Argonaute proteins (WAGO-4, CSR-1, WAGO-1, PRG-1) and the RNA-dependent RNA polymerase EGO-1. ZNFX-1 and WAGO-4 co-localize in P granules during early germline development, then segregate to form Z granules during oocyte maturation. In adult germ cells, P granules, Z granules, and Mutator foci assemble into ordered tri-condensate "PZM" assemblages. ZNFX-1's helicase activity is essential for balancing epigenetic signals by preventing the spread of small RNA targeting toward the 5'-end of mRNAs, thereby maintaining stable transgenerational silencing.

Existing Annotations Review

GO Term Evidence Action Reason
GO:0003723 RNA binding
IBA
GO_REF:0000033
ACCEPT
Summary: ZNFX-1 contains NF-X1 type zinc finger domains and functions within RNA/protein granules (Z granules). The protein interacts with Argonaute proteins (CSR-1, WAGO-1, WAGO-4, PRG-1) and the RdRP EGO-1, all of which are RNA-binding proteins involved in small RNA pathways [PMID:29775580, PMID:29769721]. RNA binding is consistent with its role in RNA helicase activity and small RNA-mediated gene silencing.
Reason: RNA binding is a core function supported by multiple lines of evidence: the protein contains NFX1-type zinc finger domains (4 copies), localizes to RNA/protein granules, and functions in small RNA pathways. IBA phylogenetic inference is appropriate given conservation across species. Falcon deep research adds that ZNFX-1 binds small-RNA-targeted transcripts bearing poly(UG) tails and physically associates with the RdRP EGO-1 and Argonautes CSR-1, WAGO-1 and PRG-1.
Supporting Evidence:
PMID:29775580
we identify the deeply conserved helicase-domain protein, ZNFX-1, as an epigenetic regulator and component of nuage that interacts with Argonaute systems to balance epigenetic inheritance
PMID:29769721
ZNFX-1 is a conserved RNA helicase, which marks RNAs produced from genes undergoing heritable silencing
file:worm/znfx-1/znfx-1-deep-research-falcon.md
ZNFX-1 interacts with small-RNA-targeted transcripts that acquire **poly(UG) (pUG) tails**, and it is required to maintain pUGylation and concentrate targeted mature RNAs in perinuclear condensates
GO:0031048 regulatory ncRNA-mediated heterochromatin formation
IBA
GO_REF:0000033
MODIFY
Summary: This annotation is inferred from S. pombe ortholog hrr1 (SPCC1739.03). While ZNFX-1 is involved in regulatory ncRNA-mediated gene silencing, its primary function in C. elegans appears to be cytoplasmic post-transcriptional silencing rather than heterochromatin formation. The key role of ZNFX-1 is transgenerational siRNA inheritance via cytoplasmic Z granules, not nuclear heterochromatin assembly.
Reason: While the S. pombe ortholog hrr1 functions in heterochromatin formation, C. elegans ZNFX-1 functions primarily in cytoplasmic transgenerational RNAi inheritance. The term is too specific to the nuclear heterochromatin pathway. A more appropriate term would reflect its role in siRNA-mediated gene silencing. Falcon deep research reinforces this: ZNFX-1 acts in a cytoplasmic/perinuclear amplification loop operating in parallel to nuclear HRDE-1, where HRDE-1 targets nascent transcripts while ZNFX-1 targets mature transcripts in nuage; znfx-1 mutants are specifically defective in cytoplasm-only inheritance (viability ~6.87% vs ~85% in controls).
Supporting Evidence:
PMID:29769721
The data establish that ZNFX-1 is a dedicated RNAi inheritance factor
UniProt:E9P860
Epigenetic inheritance factor which, in association with the Argonaute protein wago-4, mediates small RNA-directed transgenerational epigenetic inheritance
file:worm/znfx-1/znfx-1-deep-research-falcon.md
HRDE-1 targets nascent transcripts, while ZNFX-1 targets **mature transcripts** in nuage, maintains **pUGylated RNAs**, and promotes robust tertiary 22G-RNA amplification in inheriting generations.
GO:0031380 nuclear RNA-directed RNA polymerase complex
IBA
GO_REF:0000033
REMOVE
Summary: This annotation is inferred from S. pombe ortholog hrr1. However, in C. elegans, ZNFX-1 does not localize to the nucleus but rather to cytoplasmic perinuclear granules (Z granules). While ZNFX-1 interacts with the RdRP EGO-1, this interaction occurs in cytoplasmic nuage, not in a nuclear complex. The primary localization of ZNFX-1 is to Z granules adjacent to P granules in the perinuclear region.
Reason: UniProt explicitly states ZNFX-1 localizes to "Cytoplasm, perinuclear region" and "Cytoplasmic granule" (Z granules). There is no evidence for nuclear localization in C. elegans. The S. pombe ortholog hrr1 has a distinct nuclear function that does not apply to the C. elegans protein.
Supporting Evidence:
PMID:29769721
Later in germline development, ZNFX-1 and WAGO-4 separate from P granules to define an independent liquid-like condensate that we term the Z granule
PMID:29775580
we identify the deeply conserved helicase-domain protein, ZNFX-1, as an epigenetic regulator and component of nuage
GO:0000166 nucleotide binding
IEA
GO_REF:0000043
ACCEPT
Summary: ZNFX-1 contains a UvrD-like helicase ATP-binding domain (residues 1040-1545) and has been assigned EC 3.6.4.13 (RNA helicase) activity. The protein has a characterized ATP binding site (residues 1061-1068). Nucleotide binding is consistent with its helicase function.
Reason: This is a parent term of ATP binding (GO:0005524) which is directly supported by the domain architecture. While less specific, it is not incorrect. The IEA annotation from UniProt keyword mapping is valid.
Supporting Evidence:
UniProt:E9P860
Alternative splicing; ATP-binding; Cytoplasm; Helicase; Hydrolase
GO:0003723 RNA binding
IEA
GO_REF:0000043
ACCEPT
Summary: Duplicate of the IBA annotation. ZNFX-1 contains NFX1-type zinc finger domains and functions in RNA/protein granules involved in small RNA pathways. RNA binding is consistent with its role as an RNA helicase.
Reason: While this duplicates the IBA annotation, both are valid. The IEA annotation from UniProt keyword mapping independently supports RNA binding based on domain content.
Supporting Evidence:
PMID:29775580
we identify the deeply conserved helicase-domain protein, ZNFX-1, as an epigenetic regulator and component of nuage that interacts with Argonaute systems to balance epigenetic inheritance
GO:0003724 RNA helicase activity
IEA
GO_REF:0000003
ACCEPT
Summary: ZNFX-1 is assigned EC 3.6.4.13 (RNA helicase) and contains a UvrD-like helicase ATP-binding domain. Mutagenesis studies show that mutations in the helicase domain (K1067A in Walker A motif, L1530F, Y1562C) disrupt RNA-induced gene silencing, demonstrating the functional importance of helicase activity.
Reason: This is a core molecular function of ZNFX-1. The protein is classified as an RNA helicase (EC 3.6.4.13) and contains the characteristic helicase domain. Mutagenesis of helicase domain residues abolishes function. Falcon deep research confirms ZNFX-1 is a UPF1-like superfamily-1 (SF1) helicase whose helicase core is functionally essential (ATP-binding-site mutant K1067A and helicase-domain deletions cause inheritance defects), acting in small-RNA amplification rather than as a classical metabolic enzyme.
Supporting Evidence:
UniProt:E9P860
EC=3.6.4.13 {ECO:0000305|PubMed:29775580}
PMID:29769721
ZK1067.2 encodes a 2443 amino acid protein that contains a superfamily one (SF1) RNA helicase domain and a Zn finger domain
file:worm/znfx-1/znfx-1-deep-research-falcon.md
**central UPF1-like SF1 helicase domain** and **six cysteine-rich NF-X1-like motifs**
GO:0004386 helicase activity
IEA
GO_REF:0000120
ACCEPT
Summary: This is a parent term of RNA helicase activity (GO:0003724). ZNFX-1 contains InterPro domain IPR041677 (DNA2/NAM7_AAA_11) which supports helicase activity classification.
Reason: Valid parent term of the more specific RNA helicase activity. The annotation is consistent with domain architecture and functional data.
Supporting Evidence:
PMID:29769721
ZK1067.2 encodes a 2443 amino acid protein that contains a superfamily one (SF1) RNA helicase domain and a Zn finger domain
GO:0005524 ATP binding
IEA
GO_REF:0000043
ACCEPT
Summary: ZNFX-1 has a characterized ATP binding site at residues 1061-1068 within the UvrD-like helicase ATP-binding domain. The Walker A motif lysine (K1067) is critical for function, as K1067A mutation causes defective RNA-induced gene silencing.
Reason: ATP binding is a core molecular function supported by domain architecture and validated by mutagenesis.
Supporting Evidence:
UniProt:E9P860
Alternative splicing; ATP-binding; Cytoplasm; Helicase; Hydrolase
UniProt:E9P860
K->A: In ne4382; defective RNA-induced gene silencing
GO:0005634 nucleus
IEA
GO_REF:0000002
REMOVE
Summary: This annotation is based on InterPro domain IPR000967 (NF-X1 zinc finger), which in some family members is associated with nuclear localization. However, experimental evidence in C. elegans shows ZNFX-1 localizes to cytoplasmic perinuclear granules (Z granules), not the nucleus itself.
Reason: Experimental evidence from multiple publications demonstrates cytoplasmic localization to Z granules and perinuclear region, not nuclear localization. UniProt subcellular location explicitly lists "Cytoplasm, perinuclear region" and "Cytoplasmic granule" with no nuclear localization.
Supporting Evidence:
PMID:29769721
Later in germline development, ZNFX-1 and WAGO-4 separate from P granules to define an independent liquid-like condensate that we term the Z granule
UniProt:E9P860
SUBCELLULAR LOCATION: Cytoplasm, perinuclear region
GO:0005694 chromosome
IEA
GO_REF:0000117
REMOVE
Summary: This annotation from ARBA machine learning model (ARBA00026361) is not supported by experimental evidence. ZNFX-1 localizes to cytoplasmic granules (Z granules, P granules), not chromosomes. There is no evidence for direct chromosome association.
Reason: No experimental evidence supports chromosome localization. The protein functions in cytoplasmic RNA granules and perinuclear nuage. This appears to be an erroneous inference.
Supporting Evidence:
PMID:29769721
Later in germline development, ZNFX-1 and WAGO-4 separate from P granules to define an independent liquid-like condensate that we term the Z granule
PMID:29775580
we identify the deeply conserved helicase-domain protein, ZNFX-1, as an epigenetic regulator and component of nuage
GO:0005737 cytoplasm
IEA
GO_REF:0000044
ACCEPT
Summary: ZNFX-1 localizes to cytoplasmic Z granules and P granules. UniProt explicitly states "Cytoplasm" and "Cytoplasm, perinuclear region" as subcellular locations.
Reason: Cytoplasmic localization is well-supported by experimental evidence from multiple publications. This is a valid general localization term.
Supporting Evidence:
UniProt:E9P860
SUBCELLULAR LOCATION: Cytoplasm, perinuclear region
PMID:29769721
Later in germline development, ZNFX-1 and WAGO-4 separate from P granules to define an independent liquid-like condensate that we term the Z granule
GO:0008270 zinc ion binding
IEA
GO_REF:0000120
ACCEPT
Summary: ZNFX-1 contains four NF-X1-type zinc finger domains (at positions 1769-1791, 1853-1873, 1912-1930, 2027-2044). These domains require zinc ions for structural integrity and function.
Reason: Zinc ion binding is directly supported by the presence of multiple NFX1-type zinc finger domains in the protein sequence. This is a valid molecular function annotation.
Supporting Evidence:
UniProt:E9P860
RNA-mediated gene silencing; Zinc; Zinc-finger
GO:0016787 hydrolase activity
IEA
GO_REF:0000043
ACCEPT
Summary: ZNFX-1 is classified as EC 3.6.4.13 (RNA helicase), which is a subclass of hydrolase activity. The protein catalyzes ATP hydrolysis coupled to RNA unwinding.
Reason: This is a valid parent term of ATP hydrolysis activity, consistent with the RNA helicase function.
Supporting Evidence:
UniProt:E9P860
EC=3.6.4.13 {ECO:0000305|PubMed:29775580}
GO:0016887 ATP hydrolysis activity
IEA
GO_REF:0000116
ACCEPT
Summary: ZNFX-1 catalyzes ATP hydrolysis as part of its RNA helicase function. UniProt assigns the reaction "ATP + H2O = ADP + phosphate + H(+)" with Rhea reference RHEA:13065.
Reason: ATP hydrolysis is the energy source for RNA helicase activity. This is a core molecular function directly supported by the EC classification and Rhea reaction mapping.
Supporting Evidence:
UniProt:E9P860
Reaction=ATP + H2O = ADP + phosphate + H(+)
GO:0031047 regulatory ncRNA-mediated gene silencing
IEA
GO_REF:0000043
ACCEPT
Summary: ZNFX-1 is essential for small RNA-mediated transgenerational gene silencing. It functions in the RNAi inheritance pathway, maintaining silencing signals across generations. znfx-1 mutants respond normally to RNAi but cannot transmit silencing to progeny.
Reason: This is a core biological process function of ZNFX-1. The protein is dedicated to transgenerational siRNA-mediated gene silencing in the germline. Falcon deep research confirms ZNFX-1 enables amplification, patterning and persistence of small-RNA-guided silencing across generations.
Supporting Evidence:
PMID:29769721
The data establish that ZNFX-1 is a dedicated RNAi inheritance factor
UniProt:E9P860
Plays a role in small RNA- induced gene silencing in the germline (PubMed:29775580)
file:worm/znfx-1/znfx-1-deep-research-falcon.md
ZNFX-1 is best supported as an **RNA helicase/NTPase-like regulatory factor** that acts in **perinuclear condensates** to enable **amplification, patterning, and persistence** of small-RNAโ€“guided silencing across generations.
GO:0046872 metal ion binding
IEA
GO_REF:0000043
ACCEPT
Summary: This is a parent term of zinc ion binding. ZNFX-1 contains four NFX1-type zinc finger domains that bind zinc ions.
Reason: Valid parent term of zinc ion binding, consistent with the zinc finger domain content.
Supporting Evidence:
UniProt:E9P860
Metal-binding; Nucleotide-binding; Reference proteome
GO:0048471 perinuclear region of cytoplasm
IEA
GO_REF:0000044
ACCEPT
Summary: ZNFX-1 localizes to perinuclear nuage where it defines Z granules. P granules, Z granules, and Mutator foci form ordered PZM assemblages in the perinuclear region of germline cells.
Reason: Perinuclear localization is strongly supported by experimental evidence. This is a core localization for ZNFX-1 in germline cells. Falcon deep research confirms ZNFX-1 localizes to perinuclear and cytoplasmic foci in germ cells and to Z-granule subdomains within perinuclear nuage.
Supporting Evidence:
PMID:29775580
we identify the deeply conserved helicase-domain protein, ZNFX-1, as an epigenetic regulator and component of nuage

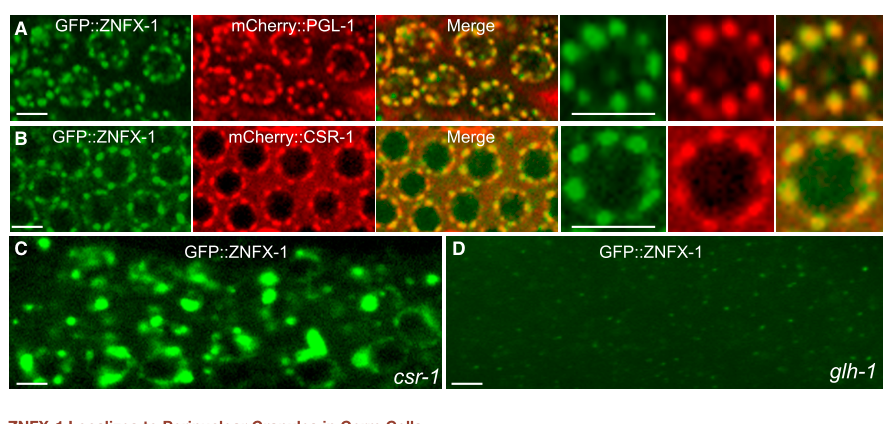

PMID:29769721
In adult germ cells, GFP::ZNFX-1 was concentrated in foci that were distributed in a perinuclear pattern around nuclei
file:worm/znfx-1/znfx-1-deep-research-falcon.md
ZNFX-1 localizes to **perinuclear and cytoplasmic foci in germ cells** and to Z-granule subdomains within perinuclear nuage.
GO:0120279 Z granule
IDA
PMID:29769721
Spatiotemporal regulation of liquid-like condensates in epig...
NEW
Summary: ZNFX-1 is the defining marker of Z granules, a class of liquid-like condensates distinct from P granules. Z granules were named for ZNFX-1, which defines these structures. The protein localizes to Z granules during oocyte maturation and in adult germ cells.
Reason: Z granule localization is the most specific and characteristic localization for ZNFX-1. The granules are named after this protein. This annotation should have IDA evidence based on direct microscopy observation. Falcon deep research confirms ZNFX-1 and WAGO-4 demix from P granules to form an independent liquid-like Z-granule condensate.
Supporting Evidence:
PMID:29769721
Later in germline development, ZNFX-1 and WAGO-4 separate from P granules to define an independent liquid-like condensate that we term the Z granule
PMID:29775580
recently identified subdomains of nuage, including ZNFX-1 granules or "Z-granules," may define spatial and temporal zones of molecular activity during epigenetic regulation
file:worm/znfx-1/znfx-1-deep-research-falcon.md
In early embryos ZNFX-1 and WAGO-4 localize with P granules, then **demix** to form an independent liquid-like condensate (Z granule)
GO:0043186 P granule
IDA
PMID:29769721
Spatiotemporal regulation of liquid-like condensates in epig...
NEW
Summary: ZNFX-1 co-localizes with WAGO-4 in P granules in early germline blastomeres (P1-P3) of the embryo, before demixing to form an independent Z granule condensate. P granule co-localization is a transient developmental phenomenon of early embryos/germline blastomeres; in adult germ cells ZNFX-1 is instead concentrated in Z granules that are closely apposed to (adjacent to) P granules rather than co-localizing within them.
Reason: P granule localization is experimentally demonstrated for early embryonic germline blastomeres and represents a transient developmental aspect of ZNFX-1 localization before Z granule segregation. In adult germ cells ZNFX-1 occupies Z granules apposed to P granules (GO:0120279), not P granules per se.
Supporting Evidence:
PMID:29769721
GFP::ZNFX-1 and GFP::WAGO-4 colocalized with PGL-1::TagRFP in P1-P3 germline blastomeres, suggesting that ZNFX-1 and WAGO-4 are P granule factors
GO:0140766 siRNA-mediated post-transcriptional gene silencing
IMP
PMID:29769721
Spatiotemporal regulation of liquid-like condensates in epig...
NEW
Summary: ZNFX-1 is required for transgenerational siRNA inheritance. znfx-1 mutants respond normally to RNAi but cannot transmit silencing to progeny, demonstrating a specific role in siRNA inheritance rather than the initial silencing response.
Reason: This is more specific than the general "regulatory ncRNA-mediated gene silencing" term and accurately reflects the siRNA-specific function of ZNFX-1. Falcon deep research notes that znfx-1 mutants can show normal immediate RNAi responses yet fail to transmit silencing to progeny, consistent with a role in maintenance/amplification of the silencing signal.
Supporting Evidence:
PMID:29769721
The data establish that ZNFX-1 is a dedicated RNAi inheritance factor
UniProt:E9P860
Plays a role in small RNA- induced gene silencing in the germline (PubMed:29775580)
file:worm/znfx-1/znfx-1-deep-research-falcon.md
mutants can show normal immediate RNAi responses yet fail to transmit silencing to progeny, consistent with ZNFX-1 acting in maintenance/amplification rather than initiation

Core Functions

ZNFX-1 functions as an RNA helicase dedicated to transgenerational siRNA inheritance, maintaining small RNA-mediated gene silencing signals across generations.

Supporting Evidence:
  • PMID:29769721
    The data establish that ZNFX-1 is a dedicated RNAi inheritance factor
  • PMID:29775580
    we identify the deeply conserved helicase-domain protein, ZNFX-1, as an epigenetic regulator and component of nuage that interacts with Argonaute systems to balance epigenetic inheritance
  • file:worm/znfx-1/znfx-1-deep-research-falcon.md
    ZNFX-1 is best supported as an **RNA helicase/NTPase-like regulatory factor** that acts in **perinuclear condensates** to enable **amplification, patterning, and persistence** of small-RNAโ€“guided silencing across generations.

References

Spatiotemporal regulation of liquid-like condensates in epigenetic inheritance
  • ZNFX-1 defines Z granules, liquid-like condensates distinct from P granules
    "Later in germline development, ZNFX-1 and WAGO-4 separate from P granules to define an independent liquid-like condensate that we term the Z granule"
  • ZNFX-1 and WAGO-4 act cooperatively for transgenerational siRNA inheritance
    "WAGO-4 functions with ZNFX-1 to transmit RNA-based epigenetic information across generations"
  • Z granules form tri-condensate PZM assemblages with P granules and Mutator foci
    "In adult germ cells, Z granules assemble into ordered tri-condensate assemblages with P granules and Mutator foci, which we term PZM granules"
  • ZNFX-1 is a dedicated RNAi inheritance factor
    "The data establish that ZNFX-1 is a dedicated RNAi inheritance factor"
  • ZNFX-1 is a conserved RNA helicase in small RNA pathways
    "ZNFX-1 is a conserved RNA helicase, which marks RNAs produced from genes undergoing heritable silencing"
ZNFX-1 Functions within Perinuclear Nuage to Balance Epigenetic Signals
  • ZNFX-1 interacts with Argonaute systems
    "we identify the deeply conserved helicase-domain protein, ZNFX-1, as an epigenetic regulator and component of nuage that interacts with Argonaute systems to balance epigenetic inheritance"
  • ZNFX-1 prevents spread of epigenetic signals toward 5'-end of target mRNAs
    "Our findings suggest that ZNFX-1 promotes the 3' recruitment of machinery that propagates the small RNA epigenetic signal and thus counteracts a tendency for Argonaute targeting to shift 5' along the mRNA"
  • Z granules are subdomains of nuage named for ZNFX-1
    "recently identified subdomains of nuage, including ZNFX-1 granules or "Z-granules," may define spatial and temporal zones of molecular activity during epigenetic regulation"
DEPS-1 is required for piRNA-dependent silencing and PIWI condensate organisation in Caenorhabditis elegans
  • ZNFX-1 forms condensates closely apposed to the P granule protein PGL-1 and to Mutator foci (MUT-16), and is found in close proximity to DEPS-1 clusters (i.e. ZNFX-1 occupies a Z-granule compartment adjacent to, not within, P granules in the adult germline)
    "ZNFX-1 forms condensates closely appose to PGL-1 and MUT-16"
The conserved helicase ZNFX-1 memorializes silenced RNAs in perinuclear condensates
  • ZNFX-1 acts in a cytoplasmic/perinuclear small RNA amplification loop (parallel to the nuclear HRDE-1 loop) that targets mature transcripts and concentrates them in perinuclear condensates
    "The second loop, dependent on the conserved helicase ZNFX-1, targets mature transcripts and concentrates them in perinuclear condensates"
  • ZNFX-1 binds small-RNA-targeted transcripts bearing poly(UG) (pUG) tails and is required to sustain pUGylation and robust small RNA amplification in the inheriting generation
    "ZNFX-1 interacts with sRNA-targeted transcripts that have acquired poly(UG) tails and is required to sustain pUGylation and robust sRNA amplification in the inheriting generation"

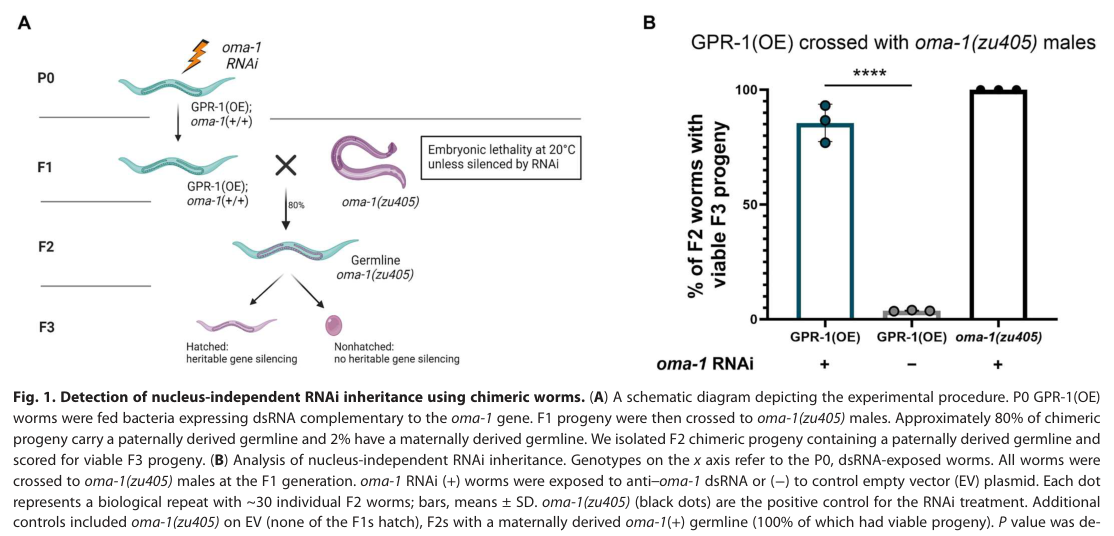

Nucleus-independent transgenerational small RNA inheritance in Caenorhabditis elegans
  • ZNFX-1 is required for nucleus-independent (cytoplasm-only) RNAi inheritance, confirming its role in a cytoplasmic inheritance pathway distinct from nuclear chromatin-based inheritance
    "ZNFX-1 is required for nucleus-independent RNAi inheritance"
Gene Ontology annotation through association of InterPro records with GO terms
Gene Ontology annotation based on Enzyme Commission mapping
Annotation inferences using phylogenetic trees
Gene Ontology annotation based on UniProtKB/Swiss-Prot keyword mapping
Gene Ontology annotation based on UniProtKB/Swiss-Prot Subcellular Location vocabulary mapping
Automatic Gene Ontology annotation based on Rhea mapping
Electronic Gene Ontology annotations created by ARBA machine learning models
Combined Automated Annotation using Multiple IEA Methods
file:worm/znfx-1/znfx-1-deep-research-falcon.md
Falcon deep research report on C. elegans znfx-1 (ZNFX-1, UniProt E9P860)
  • ZNFX-1 is a UPF1-like superfamily-1 (SF1) RNA helicase / NTPase-like regulatory factor with six cysteine-rich NF-X1-like motifs that acts in perinuclear condensates to enable amplification, patterning and persistence of small-RNA-guided silencing across generations, rather than catalyzing a classical metabolic reaction.
    "ZNFX-1 is best supported as an **RNA helicase/NTPase-like regulatory factor** that acts in **perinuclear condensates** to enable **amplification, patterning, and persistence** of small-RNAโ€“guided silencing across generations."
  • ZNFX-1 binds small-RNA-targeted transcripts bearing poly(UG) (pUG) tails and is required to maintain pUGylation and concentrate targeted mature RNAs in perinuclear condensates, preserving templates for continued amplification in inheriting generations.
    "ZNFX-1 interacts with small-RNA-targeted transcripts that acquire **poly(UG) (pUG) tails**, and it is required to maintain pUGylation and concentrate targeted mature RNAs in perinuclear condensates, thereby preserving a pool of templates for continued amplification in the inheriting generation."
  • ZNFX-1 physically associates with the germline RdRP EGO-1 and Argonautes CSR-1, WAGO-1 and PRG-1; the ZNFX-1:EGO-1 interaction is RNase-resistant (RNA-independent).
    "Co-immunoprecipitation experiments indicate that ZNFX-1 physically associates with the germline RdRP **EGO-1** and multiple Argonautes spanning distinct small-RNA systems, including **CSR-1, WAGO-1, and PRG-1**."
  • ZNFX-1 helps position RdRP to favor 3' recruitment and balanced 22G-RNA synthesis along transcripts; loss of ZNFX-1 mispatterns 22G-RNAs toward 5' ends of mRNAs.
    "ZNFX-1 helps position RdRP to favor **3' recruitment** and balanced 22G-RNA synthesis along transcripts"
  • ZNFX-1 acts in a cytoplasmic/perinuclear amplification loop parallel to nuclear HRDE-1, with HRDE-1 targeting nascent transcripts and ZNFX-1 targeting mature transcripts in nuage and maintaining pUGylated RNAs for tertiary 22G-RNA amplification.
    "HRDE-1 targets nascent transcripts, while ZNFX-1 targets **mature transcripts** in nuage, maintains **pUGylated RNAs**, and promotes robust tertiary 22G-RNA amplification in inheriting generations."
  • In early embryos ZNFX-1 and WAGO-4 localize with P granules then demix to form an independent liquid-like Z-granule condensate, later assembling into ordered PZM tri-condensate structures with P granules and Mutator foci.
    "In early embryos ZNFX-1 and WAGO-4 localize with P granules, then **demix** to form an independent liquid-like condensate (Z granule)"
  • znfx-1 mutants show normal immediate RNAi but fail to transmit silencing to progeny and are specifically defective in cytoplasm-only inheritance (viability ~6.87% vs ~85% in controls), consistent with a maintenance/amplification role.
    "mutants can show normal immediate RNAi responses yet fail to transmit silencing to progeny, consistent with ZNFX-1 acting in maintenance/amplification rather than initiation"

Suggested Questions for Experts

Q: What is the precise mechanism by which ZNFX-1 helicase activity prevents 5'-ward spread of small RNA signals on target mRNAs?

Q: How is ZNFX-1 inherited from oocyte to embryo, and what determines Z granule segregation from P granules during development?

Suggested Experiments

Experiment: In vitro helicase assays with purified ZNFX-1 to determine substrate specificity (ssRNA vs dsRNA, specific RNA sequences). This would reveal the molecular substrate requirements for ZNFX-1 function.

Hypothesis: ZNFX-1 preferentially unwinds specific RNA structures involved in siRNA biogenesis

Type: biochemical assay

Experiment: Proximity labeling (BioID or APEX) to comprehensively identify ZNFX-1 interacting proteins in Z granules vs P granules. This would reveal the complete protein composition of Z granules and how it differs from P granules.

Hypothesis: Z granules contain a distinct proteome specialized for transgenerational inheritance

Type: proteomics

Tags

caeel-p-granules

Deep Research

Falcon

(znfx-1-deep-research-falcon.md)
this with annotations you find in gene/protein databases, but these can be outdated or inaccurate. Falcon Edison Scientific Literature 28 citations 3 artifacts 2026-05-31T18:08:30.061142

The research report should be a detailed narrative explaining the function, biological processes, and localization of the gene product. Citations should be given for all claims.

You should prioritize authoritative reviews and primary scientific literature when conducting research. You can supplement
this with annotations you find in gene/protein databases, but these can be outdated or inaccurate.

We are specifically interested in the primary function of the gene - for enzymes, what reaction is catalyzed, and what is the substrate specificity? For transporters, what is the substrate? For structural proteins or adapters, what is the broader structural role? For signaling molecules, what is the role in the pathway.

We are interested in where in or outside the cell the gene product carries out its function.

We are also interested in the signaling or biochemical pathways in which the gene functions. We are less interested in broad pleiotropic effects, except where these elucidate the precise role.

Include evidence where possible. We are interested in both experimental evidence as well as inference from structure, evolution, or bioinformatic analysis. Precise studies should be prioritized over high-throughput, where available.

Research report: Functional annotation of C. elegans znfx-1 (UniProt E9P860) / ZNFX-1

0) Identity verification (critical disambiguation)

The evidence summarized here pertains specifically to znfx-1 (ORF ZK1067.2) in Caenorhabditis elegans, encoding ZNFX-1, a conserved NFX1-type cysteine-rich/zinc-finger and UPF1-like superfamily-1 (SF1) helicase protein localized to germline perinuclear nuage and Z granules. Primary studies explicitly characterize C. elegans ZNFX-1 as a UPF1-like SF1 helicase-domain protein with multiple NF-X1-like cysteine-rich motifs and demonstrate germline nuage localization and small-RNA inheritance phenotypes, consistent with UniProt E9P860. (ishidate2018znfx1functionswithin pages 4-5, ishidate2018znfx1functionswithin pages 1-3)

1) Key concepts and definitions (current understanding)

1.1 RNAi inheritance / transgenerational epigenetic inheritance (TEI)

In C. elegans, double-stranded RNA (dsRNA) can induce a gene-silencing response (RNA interference, RNAi) that persists in descendants not exposed to the original trigger. This inherited silencing is mediated by small RNAs and associated proteins and is often conceptualized as RNA-directed TEI. ZNFX-1 is one of the germline factors required for robust inherited RNAi silencing, particularly via cytoplasmic/perinuclear germ-granule pathways. (wan2017transgenerationalepigeneticinheritance pages 14-20, ouyang2021twoparallelsrna pages 9-12, rieger2023nucleusindependenttransgenerationalsmalla pages 2-3)

1.2 Germ granules, perinuclear nuage, and Z granules

Germ granules are RNA-rich biomolecular condensates associated with germ cells. In C. elegans, perinuclear nuage is compartmentalized into subdomains, including P granules, Mutator foci, and a distinct condensate termed the Z granule.

A foundational model posits that Z granules are defined by ZNFX-1 and WAGO-4 and organize small-RNA inheritance functions by spatially ordering silencing machinery. Quantitatively, one study reported that in adult germ cells 60% (52/86) of Z granules were closely apposed to both a P granule and a Mutator focus, and in 92% (48/52) of those, the Z granule lay between the other two condensates, supporting a stereotyped โ€œPโ€“Zโ€“Mโ€ arrangement. (wan2017transgenerationalepigeneticinheritance pages 8-11)

2) Molecular function of ZNFX-1 (primary function, mechanism, and biochemical role)

2.1 What ZNFX-1 does (functional summary)

ZNFX-1 is best supported as an RNA helicase/NTPase-like regulatory factor that acts in perinuclear condensates to enable amplification, patterning, and persistence of small-RNAโ€“guided silencing across generations.

Rather than catalyzing a classical metabolic transformation with a defined small-molecule substrate, ZNFX-1 appears to function in a small-RNA amplification circuit by interacting with target RNAs and recruitment/positioning of amplification machinery (notably RdRP). Functional necessity of the helicase core is supported by alleles affecting the ATP-binding site (e.g., K1067A) and helicase-domain deletions causing inheritance defects. (ishidate2018znfx1functionswithin pages 4-5, ishidate2018znfx1functionswithin pages 10-11)

2.2 Relationship to pUGylated RNAs and โ€œmemorializingโ€ silenced transcripts

A mechanistic advance is that ZNFX-1 interacts with small-RNA-targeted transcripts that acquire poly(UG) (pUG) tails, and it is required to maintain pUGylation and concentrate targeted mature RNAs in perinuclear condensates, thereby preserving a pool of templates for continued amplification in the inheriting generation. (ouyang2022theconservedhelicase pages 10-11, ouyang2021twoparallelsrna pages 9-12)

2.3 Interaction partners and pathway placement

Co-immunoprecipitation experiments indicate that ZNFX-1 physically associates with the germline RdRP EGO-1 and multiple Argonautes spanning distinct small-RNA systems, including CSR-1, WAGO-1, and PRG-1. The ZNFX-1:EGO-1 interaction is reported to be RNase Iโ€“resistant (RNA-independent complex), while interactions with WAGO-1 and PRG-1 are partially RNase sensitive. (ishidate2018znfx1functionswithin pages 7-8)

These interactions place ZNFX-1 at a nexus linking:
- piRNA/PRG-1 initiation of silencing,
- WAGO-class amplification/maintenance, and
- coexistence with CSR-1-related licensing/anti-silencing circuitry,
consistent with a role in balancing epigenetic signals rather than acting solely as a one-directional silencing factor. (ishidate2018znfx1functionswithin pages 5-7, ishidate2018znfx1functionswithin pages 1-3)

3) Subcellular localization: where ZNFX-1 carries out its function

3.1 Germline perinuclear nuage and Z-granule subdomain

ZNFX-1 localizes to perinuclear and cytoplasmic foci in germ cells and to Z-granule subdomains within perinuclear nuage. Imaging shows GFP::ZNFX-1 signal at perinuclear granules resembling P-granules, while models and images support a ZNFX-1-enriched zone positioned between nuclear-proximal Argonaute/P-granule components and more distal RdRP/Mutator components. (ishidate2018znfx1functionswithin pages 5-7, ishidate2018znfx1functionswithin media f3d69953, ishidate2018znfx1functionswithin media 50639262)

3.2 Developmental dynamics and condensate architecture

In early embryos ZNFX-1 and WAGO-4 localize with P granules, then demix to form an independent liquid-like condensate (Z granule), later assembling into ordered multi-condensate structures with P granules and Mutator foci, consistent with a spatial organizing role for inheritance pathways. (wan2017transgenerationalepigeneticinheritance pages 8-11)

4) Phenotypes, quantitative outcomes, and statistics (selected highlights)

4.1 RNAe / epigenetic state maintenance phenotypes

ZNFX-1 is required for stable maintenance of some epigenetic silencing states (RNAe). In one genetic framework, znfx-1 deletion or key functional alleles led to stable GFP expression by F5 (deletion/K1067A/L1530F) or F6 (Y1562C), reflecting failure to maintain silencing. Temperature dependence was observed: at 15ยฐC, GFP expression did not stabilize for >10 generations until animals were shifted to 25ยฐC, and the Y1562C allele showed temperature-sensitive defects and reduced protein levels. (ishidate2018znfx1functionswithin pages 5-7, ishidate2018znfx1functionswithin pages 4-5)

4.2 Small-RNA amplification and patterning metrics

In a parallel-loop model for RNAi inheritance, ZNFX-1 acts in a pathway largely distinct from nuclear HRDE-1:
- In F1 progeny, wild type showed a 23-fold increase in mex-6 small RNAs; hrde-1 mutants retained ~83% of wild-type levels; znfx-1 mutants retained ~6% and lacked trigger-region enrichment.
- In P0 animals, mex-6 small RNAs increased by ~200-fold in both wild type and znfx-1, with only a ~16% reduction in znfx-1, indicating a particularly strong requirement for ZNFX-1 in inheriting generations.
- ZNFX-1 was required for sustained accumulation of pUGylated transcripts in F1 adults (pUGylated mex-6 absent in znfx-1 F1 adults), while initial pUGylation in P0 and transmission to embryos could still occur.
(ouyang2021twoparallelsrna pages 9-12)

A separate analysis reported that while overall small-RNA category counts were similar between wild type and znfx-1 mutants, total 22G-RNA levels could show a ~12% increase, with substantial gene-specific changes (including โ‰ฅ2-fold changes for subsets of targets), and that loss of ZNFX-1 altered the distribution of 22G-RNAs along transcripts (shifting toward 5โ€ฒ ends). (ishidate2018znfx1functionswithin pages 7-8, ishidate2018znfx1functionswithin pages 10-11)

4.3 2023 nucleus-independent (cytoplasmic) inheritance assays: strong quantitative evidence

A major 2023 advance was a cytoplasm-only inheritance assay using GPR-1 overexpression to generate chimeric progeny. In this framework:
- Cytoplasm-only inheritance in controls yielded approximately 85.56 ยฑ 6.65% viable F3 progeny.
- znfx-1 mutants were defective in cytoplasmic inheritance, with viability dropping to 6.87 ยฑ 3.54% under a stringent cytoplasm-only condition (and reported as weak/partial inheritance in other contexts).
- Disrupting normal germ-granule segregation (pptr-1 mutants) paradoxically strengthened cytoplasmic inheritance and partially bypassed znfx-1 requirement, with pptr-1;znfx-1 showing 19.25 ยฑ 10.94% viability.
- Inherited/upregulated ZNFX-1-class small RNAs were enriched 6.2-fold (P < 0.0001).
(rieger2023nucleusindependenttransgenerationalsmalla pages 5-6, rieger2023nucleusindependenttransgenerationalsmalla pages 3-5, rieger2023nucleusindependenttransgenerationalsmall media 4097c1e5)

5) Recent developments (prioritizing 2023โ€“2024)

5.1 2023: Granule architecture and systems-level consequences

A 2023 study focused on germ-granule architecture showed that disrupting perinuclear granule anchoring (e.g., via eggd-1 loss) mislocalizes Z-granule components. Quantitatively, in eggd-1 mutants GFP::ZNFX-1 mean granule volume decreased by 2.32-fold at the nuclear periphery and 1.64-fold in the rachis compared with wild-type perinuclear granules, consistent with altered Z-granule morphology and positioning when perinuclear organization breaks down. (price2023c.elegansgerm pages 1-2)

5.2 2024: Compartmentalization as a design principle for specialized small-RNA production

2024 work further reinforced that germ granules are compartmentalized structures that coordinate specialized small-RNA pathways. Within this conceptual framework, Z granules (ZNFX-1/WAGO-4-positive) remain central as a compartment linked to inherited silencing and small-RNA amplification, and new subcompartments (e.g., E granules) and their machinery were described as coordinating specialized 22G-RNA synthesis. (price2023c.elegansgerm pages 2-3, price2023c.elegansgerm pages 1-2)

6) Current applications and real-world implementations

ZNFX-1 biology in C. elegans has become a practical platform for dissecting non-Mendelian inheritance mechanisms and condensate-organized RNA regulation, with several reusable experimental implementations:

  1. Genetic assays of heritable RNAi/RNAe: transgenerational silencing and de-silencing across defined generations (e.g., F1โ€“F6 and beyond) provide readouts of pathway integrity. (ishidate2018znfx1functionswithin pages 5-7, ouyang2021twoparallelsrna pages 9-12)
  2. Cytoplasm-only inheritance chimeras (GPR-1(OE)): explicitly separates cytoplasmic from nuclear contributions to inherited silencing; yields quantitative viability and sequencing endpoints. (rieger2023nucleusindependenttransgenerationalsmalla pages 3-5, rieger2023nucleusindependenttransgenerationalsmalla pages 2-3, rieger2023nucleusindependenttransgenerationalsmall media 4097c1e5)
  3. pUG-tail detection: RT-PCR methods using poly(UG)-specific primers and/or immunoprecipitation of ZNFX-1 to assay pUGylated intermediates provide molecular signatures for ZNFX-1-dependent inheritance cycles. (ouyang2021twoparallelsrna pages 9-12)
  4. Endogenous fluorescent tagging and quantitative imaging: GFP::ZNFX-1 enables localization and morphometry (e.g., granule volumes and adjacency relationships). (price2023c.elegansgerm pages 1-2, ishidate2018znfx1functionswithin media f3d69953)

Collectively, these approaches enable mechanistic mapping of how small RNAs, Argonautes, RdRP, and condensate architecture jointly encode and transmit epigenetic memory.

7) Expert opinions / authoritative synthesis from reviews

A 2023 review on small non-coding RNA inheritance highlights znfx-1 as a Z-granule-associated helicase required for RNAi inheritance, emphasizing that mutants can show normal immediate RNAi responses yet fail to transmit silencing to progeny, consistent with ZNFX-1 acting in maintenance/amplification rather than initiation. The review also places ZNFX-1 in the context of PZM tri-condensate models and perinuclear puncta overlapping PRG-1, MUT-16, and ZNFX-1 during inherited silencing. (ow2023inheritanceofstress pages 7-8)

8) Evidence map (table)

The following table provides a compact crosswalk from annotation aspects (domains, localization, partners, pathway role, quantitative phenotypes) to primary sources and URLs.

Aspect Key findings Key sources URL/DOI
identity/domains Identity verified: Caenorhabditis elegans znfx-1 encodes ZNFX-1, a deeply conserved ZNFX1-family / NFX1-type zinc finger-containing protein localized to germline nuage. Domain architecture includes a central UPF1-like SF1 helicase domain and six cysteine-rich NF-X1-like motifs; the helicase and cysteine-rich regions are both required for epigenetic inheritance. This matches UniProt E9P860 family/domain annotations (helicase/P-loop NTPase/Upf1-like). (ishidate2018znfx1functionswithin pages 4-5, ishidate2018znfx1functionswithin pages 1-3) Ishidate 2018 https://doi.org/10.1016/j.molcel.2018.04.009
molecular activity ZNFX-1 is experimentally supported as an RNA helicase/NTPase-like factor acting in small-RNA amplification rather than a classical metabolic enzyme with a defined soluble substrate. Genetic evidence from the ATP-binding-site mutant K1067A and helicase-domain deletions shows the helicase core is functionally essential. Mechanistically, authors propose Argonautes recruit ZNFX-1 to target mRNAs, after which ZNFX-1 helps position RdRP to favor 3' recruitment and balanced 22G-RNA synthesis along transcripts; in 2022 work, ZNFX-1 binds pUGylated target RNAs and sustains their use as templates for tertiary sRNA amplification. (ishidate2018znfx1functionswithin pages 4-5, ishidate2018znfx1functionswithin pages 10-11, ouyang2022theconservedhelicase pages 10-11) Ishidate 2018; Ouyang 2022 https://doi.org/10.1016/j.molcel.2018.04.009; https://doi.org/10.1038/s41556-022-00940-w
binding partners Co-immunoprecipitation shows ZNFX-1 interacts with RdRP EGO-1 and Argonautes CSR-1, WAGO-1, PRG-1; the ZNFX-1:EGO-1 and ZNFX-1:CSR-1 interactions are RNase I resistant, while interactions with WAGO-1/PRG-1 are partly RNA-sensitive. Earlier inheritance studies also support biochemical/functional partnership with WAGO-4. (ishidate2018znfx1functionswithin pages 7-8, wan2017transgenerationalepigeneticinheritance pages 14-20) Ishidate 2018; Wan 2017/2018 https://doi.org/10.1016/j.molcel.2018.04.009; https://doi.org/10.1038/s41586-018-0132-0
localization ZNFX-1 localizes to perinuclear nuage/germ granules in the germline. It initially overlaps P granules in early germline blastomeres, then demixes with WAGO-4 to form Z granules, later assembling into ordered PZM tri-condensates with P granules and Mutator foci. Imaging metrics: in adult germ cells, 60% (52/86) of Z granules were apposed to both a P granule and Mutator focus, and in 92% (48/52) of those, the Z granule lay between them. In wild type, GFP::ZNFX-1 granules are adjacent to but separate from PGL-1 foci; in eggd-1 mutants, perinuclear ZNFX-1 is reduced and redistributes to the rachis. (wan2017transgenerationalepigeneticinheritance pages 8-11, ishidate2018znfx1functionswithin pages 5-7, price2023c.elegansgerm pages 2-3, price2023c.elegansgerm pages 1-2) Wan 2018; Ishidate 2018; Price 2023 https://doi.org/10.1038/s41586-018-0132-0; https://doi.org/10.1016/j.molcel.2018.04.009; https://doi.org/10.1038/s41467-023-41556-4
pathway roles ZNFX-1 is a core factor in RNAi inheritance / transgenerational epigenetic inheritance (TEI) and endogenous germline small-RNA regulation. It acts in a cytoplasmic/perinuclear amplification loop parallel to nuclear HRDE-1: HRDE-1 targets nascent transcripts, while ZNFX-1 targets mature transcripts in nuage, maintains pUGylated RNAs, and promotes robust tertiary 22G-RNA amplification in inheriting generations. It also helps balance outputs of WAGO/PRG-1/CSR-1 systems rather than acting solely as a silencing factor. (ouyang2022theconservedhelicase pages 10-11, ishidate2018znfx1functionswithin pages 10-11, ishidate2018znfx1functionswithin pages 1-3, ouyang2021twoparallelsrna pages 9-12) Ishidate 2018; Ouyang 2022 https://doi.org/10.1016/j.molcel.2018.04.009; https://doi.org/10.1038/s41556-022-00940-w
phenotypes/quant data RNAe maintenance defects: znfx-1 deletion or helicase/cysteine-rich mutants cause premature desilencing of silent transgenes; stable GFP expression appeared by F5 for deletion/K1067A/L1530F and by F6 for Y1562C, whereas at 15ยฐC expression did not stabilize for >10 generations until shift to 25ยฐC. Mutant protein abundance was reduced to about 10โ€“25% of WT for several alleles. Small RNAs: overall 22G-RNA abundance increased by about 12% in one mutant analysis, especially among WAGO targets, but distribution became mispatterned toward 5' ends. In RNAi inheritance assays, wild-type F1 animals showed a 23-fold increase in mex-6 sRNAs; hrde-1 retained about 83% of WT, while znfx-1 retained only about 6% and lacked enrichment at the trigger region. In P0 animals, mex-6 sRNAs rose about 200-fold in both WT and znfx-1, with only a ~16% reduction in znfx-1, showing a stronger requirement in inheriting generations. (ishidate2018znfx1functionswithin pages 7-8, ishidate2018znfx1functionswithin pages 5-7, ishidate2018znfx1functionswithin pages 4-5, ouyang2021twoparallelsrna pages 9-12) Ishidate 2018; Ouyang 2021/2022 https://doi.org/10.1016/j.molcel.2018.04.009; https://doi.org/10.1101/2021.08.13.456232; https://doi.org/10.1038/s41556-022-00940-w
2023-2024 developments/methods 2023: Cytoplasm-only inheritance assays showed RNAi can be inherited through ooplasm and that znfx-1 mutants are defective in cytoplasmic inheritance. In the GPR-1(OE) chimera system, cytoplasm-only inheritance yielded 85.56 ยฑ 6.65% viable F3 progeny in controls but only 24.49 ยฑ 8.91% in znfx-1 mutants; under one more stringent cytoplasm-only condition, residual inheritance in znfx-1 was 6.87 ยฑ 3.54%, while pptr-1 granule-segregation mutants partially bypassed the need for znfx-1 (19.25 ยฑ 10.94% viable progeny). Sequencing showed inherited ZNFX-1-class small RNAs were enriched 6.2-fold (P < 0.0001). 2023 imaging: in eggd-1 mutants, mean GFP::ZNFX-1 granule volume changed by 2.32-fold decrease at the nuclear periphery and 1.64-fold decrease in the rachis relative to WT perinuclear granules. 2024: broader condensate studies further placed ZNFX-1-positive Z granules within specialized germ-granule architecture coordinating small-RNA production and inheritance, including use of endogenous fluorescent tagging and proximity-labeling/TurboID-style approaches in the Z-granule field. (rieger2023nucleusindependenttransgenerationalsmalla pages 5-6, rieger2023nucleusindependenttransgenerationalsmalla pages 3-5, rieger2023nucleusindependenttransgenerationalsmalla pages 2-3, price2023c.elegansgerm pages 2-3, price2023c.elegansgerm pages 1-2) Rieger 2023; Price 2023; Chen 2024; Zhao 2024 https://doi.org/10.1126/sciadv.adj8618; https://doi.org/10.1038/s41467-023-41556-4; https://doi.org/10.1038/s41467-024-50027-3; https://doi.org/10.1038/s41556-024-01514-8

Table: This table summarizes experimentally supported functional annotation for C. elegans znfx-1/ZNFX-1, including identity, molecular role, localization, pathway function, and recent 2023-2024 developments. It is useful as a compact evidence map linking key claims to primary literature and quantitative findings.

9) Key figures (visual evidence)

  • Imaging evidence for perinuclear ZNFX-1 localization and schematic of ordered nuage zones (Argonautes/P granules โ†’ ZNFX-1/Z granule โ†’ RdRP/Mutator) is captured in the extracted figure panels and graphical abstract from Ishidate et al. 2018. (ishidate2018znfx1functionswithin media f3d69953, ishidate2018znfx1functionswithin media 50639262)
  • Quantitative panels for cytoplasm-only inheritance assay and znfx-1 dependence were extracted from Rieger et al. 2023 figures. (rieger2023nucleusindependenttransgenerationalsmall media 4097c1e5)

10) Practical functional-annotation conclusion (for databases)

Gene/protein: znfx-1 / ZNFX-1 (UniProt E9P860)

Primary molecular role: perinuclear nuage/Z-granule RNA helicase-family factor that binds/associates with small-RNA-targeted transcripts (including pUGylated RNAs) and coordinates RdRP/Argonaute-dependent amplification and spatial organization of heritable small-RNA silencing signals.

Cellular localization: germline perinuclear nuage, enriched in Z granules (adjacent to P granules and Mutator foci) and dynamically reorganized during development.

Pathways: cytoplasmic/perinuclear loop of RNAi inheritance operating in parallel with nuclear HRDE-1; interfaces with PRG-1 piRNA initiation, WAGO-class maintenance, and EGO-1 RdRP amplification.

Key phenotypes: defects in transgenerational RNAi inheritance (especially cytoplasm-only inheritance), instability of RNAe states, mispatterning of 22G-RNAs along transcripts, and disruption of pUGylated RNA persistence.

References (publication dates and URLs)

  • Ishidate T. et al. 2018-05. Molecular Cell. โ€œZNFX-1 Functions within Perinuclear Nuage to Balance Epigenetic Signals.โ€ https://doi.org/10.1016/j.molcel.2018.04.009 (ishidate2018znfx1functionswithin pages 1-3)
  • Wan G. et al. 2018-05. Nature. โ€œSpatiotemporal regulation of liquid-like condensates in epigenetic inheritance.โ€ https://doi.org/10.1038/s41586-018-0132-0 (wan2017transgenerationalepigeneticinheritance pages 8-11)
  • Ouyang J.P.T. et al. 2022-06. Nature Cell Biology. โ€œThe conserved helicase ZNFX-1 memorializes silenced RNAs in perinuclear condensates.โ€ https://doi.org/10.1038/s41556-022-00940-w (ouyang2022theconservedhelicase pages 10-11)
  • Price I.F. et al. 2023-09. Nature Communications. โ€œC. elegans germ granules sculpt both germline and somatic RNAome.โ€ https://doi.org/10.1038/s41467-023-41556-4 (price2023c.elegansgerm pages 1-2)
  • Rieger I. et al. 2023-10. Science Advances. โ€œNucleus-independent transgenerational small RNA inheritance in C. elegans.โ€ https://doi.org/10.1126/sciadv.adj8618 (rieger2023nucleusindependenttransgenerationalsmalla pages 2-3)
  • Ow M.C., Hall S.E. 2023-12. Epigenomes (review). โ€œInheritance of Stress Responses via Small Non-Coding RNAs in Invertebrates and Mammals.โ€ https://doi.org/10.3390/epigenomes8010001 (ow2023inheritanceofstress pages 7-8)

References

  1. (ishidate2018znfx1functionswithin pages 4-5): Takao Ishidate, Ahmet R. Ozturk, Daniel J. Durning, Rita Sharma, En-zhi Shen, Hao Chen, Meetu Seth, Masaki Shirayama, and Craig C. Mello. Znfx-1 functions within perinuclear nuage to balance epigenetic signals. Molecular cell, 70 4:639-649.e6, May 2018. URL: https://doi.org/10.1016/j.molcel.2018.04.009, doi:10.1016/j.molcel.2018.04.009. This article has 127 citations and is from a highest quality peer-reviewed journal.

  2. (ishidate2018znfx1functionswithin pages 1-3): Takao Ishidate, Ahmet R. Ozturk, Daniel J. Durning, Rita Sharma, En-zhi Shen, Hao Chen, Meetu Seth, Masaki Shirayama, and Craig C. Mello. Znfx-1 functions within perinuclear nuage to balance epigenetic signals. Molecular cell, 70 4:639-649.e6, May 2018. URL: https://doi.org/10.1016/j.molcel.2018.04.009, doi:10.1016/j.molcel.2018.04.009. This article has 127 citations and is from a highest quality peer-reviewed journal.

  3. (wan2017transgenerationalepigeneticinheritance pages 14-20): Gang Wan, Brandon D. Fields, George Spracklin, Carolyn Phillips, and Scott Kennedy. Transgenerational epigenetic inheritance factors localize to spatially and temporally ordered liquid droplet assemblages. bioRxiv, Nov 2017. URL: https://doi.org/10.1101/220111, doi:10.1101/220111. This article has 4 citations.

  4. (ouyang2021twoparallelsrna pages 9-12): John Paul Tsu Ouyang, Wenyan Zhang, and Geraldine Seydoux. Two parallel srna amplification cycles contribute to rnai inheritance in c. elegans. bioRxiv, Aug 2021. URL: https://doi.org/10.1101/2021.08.13.456232, doi:10.1101/2021.08.13.456232. This article has 3 citations.

  5. (rieger2023nucleusindependenttransgenerationalsmalla pages 2-3): Itai Rieger, Guy Weintraub, Itamar Lev, Kesem Goldstein, Dana Bar-Zvi, Sarit Anava, Hila Gingold, Shai Shaham, and Oded Rechavi. Nucleus-independent transgenerational small rna inheritance in caenorhabditis elegans. Oct 2023. URL: https://doi.org/10.1126/sciadv.adj8618, doi:10.1126/sciadv.adj8618. This article has 10 citations and is from a highest quality peer-reviewed journal.

  6. (wan2017transgenerationalepigeneticinheritance pages 8-11): Gang Wan, Brandon D. Fields, George Spracklin, Carolyn Phillips, and Scott Kennedy. Transgenerational epigenetic inheritance factors localize to spatially and temporally ordered liquid droplet assemblages. bioRxiv, Nov 2017. URL: https://doi.org/10.1101/220111, doi:10.1101/220111. This article has 4 citations.

  7. (ishidate2018znfx1functionswithin pages 10-11): Takao Ishidate, Ahmet R. Ozturk, Daniel J. Durning, Rita Sharma, En-zhi Shen, Hao Chen, Meetu Seth, Masaki Shirayama, and Craig C. Mello. Znfx-1 functions within perinuclear nuage to balance epigenetic signals. Molecular cell, 70 4:639-649.e6, May 2018. URL: https://doi.org/10.1016/j.molcel.2018.04.009, doi:10.1016/j.molcel.2018.04.009. This article has 127 citations and is from a highest quality peer-reviewed journal.

  8. (ouyang2022theconservedhelicase pages 10-11): John Paul Tsu Ouyang, Wenyan Lucy Zhang, and Geraldine Seydoux. The conserved helicase znfx-1 memorializes silenced rnas in perinuclear condensates. Nature Cell Biology, 24:1129-1140, Jun 2022. URL: https://doi.org/10.1038/s41556-022-00940-w, doi:10.1038/s41556-022-00940-w. This article has 56 citations and is from a highest quality peer-reviewed journal.

  9. (ishidate2018znfx1functionswithin pages 7-8): Takao Ishidate, Ahmet R. Ozturk, Daniel J. Durning, Rita Sharma, En-zhi Shen, Hao Chen, Meetu Seth, Masaki Shirayama, and Craig C. Mello. Znfx-1 functions within perinuclear nuage to balance epigenetic signals. Molecular cell, 70 4:639-649.e6, May 2018. URL: https://doi.org/10.1016/j.molcel.2018.04.009, doi:10.1016/j.molcel.2018.04.009. This article has 127 citations and is from a highest quality peer-reviewed journal.

  10. (ishidate2018znfx1functionswithin pages 5-7): Takao Ishidate, Ahmet R. Ozturk, Daniel J. Durning, Rita Sharma, En-zhi Shen, Hao Chen, Meetu Seth, Masaki Shirayama, and Craig C. Mello. Znfx-1 functions within perinuclear nuage to balance epigenetic signals. Molecular cell, 70 4:639-649.e6, May 2018. URL: https://doi.org/10.1016/j.molcel.2018.04.009, doi:10.1016/j.molcel.2018.04.009. This article has 127 citations and is from a highest quality peer-reviewed journal.

  11. (ishidate2018znfx1functionswithin media f3d69953): Takao Ishidate, Ahmet R. Ozturk, Daniel J. Durning, Rita Sharma, En-zhi Shen, Hao Chen, Meetu Seth, Masaki Shirayama, and Craig C. Mello. Znfx-1 functions within perinuclear nuage to balance epigenetic signals. Molecular cell, 70 4:639-649.e6, May 2018. URL: https://doi.org/10.1016/j.molcel.2018.04.009, doi:10.1016/j.molcel.2018.04.009. This article has 127 citations and is from a highest quality peer-reviewed journal.

  12. (ishidate2018znfx1functionswithin media 50639262): Takao Ishidate, Ahmet R. Ozturk, Daniel J. Durning, Rita Sharma, En-zhi Shen, Hao Chen, Meetu Seth, Masaki Shirayama, and Craig C. Mello. Znfx-1 functions within perinuclear nuage to balance epigenetic signals. Molecular cell, 70 4:639-649.e6, May 2018. URL: https://doi.org/10.1016/j.molcel.2018.04.009, doi:10.1016/j.molcel.2018.04.009. This article has 127 citations and is from a highest quality peer-reviewed journal.

  13. (rieger2023nucleusindependenttransgenerationalsmalla pages 5-6): Itai Rieger, Guy Weintraub, Itamar Lev, Kesem Goldstein, Dana Bar-Zvi, Sarit Anava, Hila Gingold, Shai Shaham, and Oded Rechavi. Nucleus-independent transgenerational small rna inheritance in caenorhabditis elegans. Oct 2023. URL: https://doi.org/10.1126/sciadv.adj8618, doi:10.1126/sciadv.adj8618. This article has 10 citations and is from a highest quality peer-reviewed journal.

  14. (rieger2023nucleusindependenttransgenerationalsmalla pages 3-5): Itai Rieger, Guy Weintraub, Itamar Lev, Kesem Goldstein, Dana Bar-Zvi, Sarit Anava, Hila Gingold, Shai Shaham, and Oded Rechavi. Nucleus-independent transgenerational small rna inheritance in caenorhabditis elegans. Oct 2023. URL: https://doi.org/10.1126/sciadv.adj8618, doi:10.1126/sciadv.adj8618. This article has 10 citations and is from a highest quality peer-reviewed journal.

  15. (rieger2023nucleusindependenttransgenerationalsmall media 4097c1e5): Itai Rieger, Guy Weintraub, Itamar Lev, Kesem Goldstein, Dana Bar-Zvi, Sarit Anava, Hila Gingold, Shai Shaham, and Oded Rechavi. Nucleus-independent transgenerational small rna inheritance in caenorhabditis elegans. Oct 2023. URL: https://doi.org/10.1126/sciadv.adj8618, doi:10.1126/sciadv.adj8618. This article has 10 citations and is from a highest quality peer-reviewed journal.

  16. (price2023c.elegansgerm pages 1-2): Ian F. Price, Jillian A. Wagner, Benjamin Pastore, Hannah L. Hertz, and Wen Tang. C. elegans germ granules sculpt both germline and somatic rnaome. Nature Communications, Sep 2023. URL: https://doi.org/10.1038/s41467-023-41556-4, doi:10.1038/s41467-023-41556-4. This article has 31 citations and is from a highest quality peer-reviewed journal.

  17. (price2023c.elegansgerm pages 2-3): Ian F. Price, Jillian A. Wagner, Benjamin Pastore, Hannah L. Hertz, and Wen Tang. C. elegans germ granules sculpt both germline and somatic rnaome. Nature Communications, Sep 2023. URL: https://doi.org/10.1038/s41467-023-41556-4, doi:10.1038/s41467-023-41556-4. This article has 31 citations and is from a highest quality peer-reviewed journal.

  18. (ow2023inheritanceofstress pages 7-8): Maria C. Ow and Sarah E. Hall. Inheritance of stress responses via small non-coding rnas in invertebrates and mammals. Epigenomes, 8:1, Dec 2023. URL: https://doi.org/10.3390/epigenomes8010001, doi:10.3390/epigenomes8010001. This article has 10 citations.

Artifacts

Citations

  1. wan2017transgenerationalepigeneticinheritance pages 8-11
  2. ouyang2021twoparallelsrna pages 9-12
  3. ow2023inheritanceofstress pages 7-8
  4. ouyang2022theconservedhelicase pages 10-11
  5. rieger2023nucleusindependenttransgenerationalsmalla pages 2-3
  6. wan2017transgenerationalepigeneticinheritance pages 14-20
  7. rieger2023nucleusindependenttransgenerationalsmalla pages 5-6
  8. rieger2023nucleusindependenttransgenerationalsmalla pages 3-5
  9. https://doi.org/10.1016/j.molcel.2018.04.009
  10. https://doi.org/10.1016/j.molcel.2018.04.009;
  11. https://doi.org/10.1038/s41556-022-00940-w
  12. https://doi.org/10.1038/s41586-018-0132-0
  13. https://doi.org/10.1038/s41586-018-0132-0;
  14. https://doi.org/10.1038/s41467-023-41556-4
  15. https://doi.org/10.1101/2021.08.13.456232;
  16. https://doi.org/10.1126/sciadv.adj8618;
  17. https://doi.org/10.1038/s41467-023-41556-4;
  18. https://doi.org/10.1038/s41467-024-50027-3;
  19. https://doi.org/10.1038/s41556-024-01514-8
  20. https://doi.org/10.1126/sciadv.adj8618
  21. https://doi.org/10.3390/epigenomes8010001
  22. https://doi.org/10.1016/j.molcel.2018.04.009,
  23. https://doi.org/10.1101/220111,
  24. https://doi.org/10.1101/2021.08.13.456232,
  25. https://doi.org/10.1126/sciadv.adj8618,
  26. https://doi.org/10.1038/s41556-022-00940-w,
  27. https://doi.org/10.1038/s41467-023-41556-4,
  28. https://doi.org/10.3390/epigenomes8010001,

๐Ÿ“„ View Raw YAML

id: E9P860
gene_symbol: znfx-1
product_type: PROTEIN
status: COMPLETE
taxon:
  id: NCBITaxon:6239
  label: Caenorhabditis elegans
description: ZNFX-1 is a conserved NFX1-type zinc finger-containing RNA helicase that
  is the defining component of Z granules, a class of liquid-like condensates distinct
  from P granules. ZNFX-1 functions as a dedicated transgenerational RNAi inheritance
  factor, required for transmitting small RNA-mediated gene silencing signals across
  generations. The protein localizes to perinuclear nuage where it interacts with
  Argonaute proteins (WAGO-4, CSR-1, WAGO-1, PRG-1) and the RNA-dependent RNA polymerase
  EGO-1. ZNFX-1 and WAGO-4 co-localize in P granules during early germline development,
  then segregate to form Z granules during oocyte maturation. In adult germ cells,
  P granules, Z granules, and Mutator foci assemble into ordered tri-condensate "PZM"
  assemblages. ZNFX-1's helicase activity is essential for balancing epigenetic signals
  by preventing the spread of small RNA targeting toward the 5'-end of mRNAs, thereby
  maintaining stable transgenerational silencing.
existing_annotations:
- term:
    id: GO:0003723
    label: RNA binding
  evidence_type: IBA
  original_reference_id: GO_REF:0000033
  review:
    summary: ZNFX-1 contains NF-X1 type zinc finger domains and functions within RNA/protein
      granules (Z granules). The protein interacts with Argonaute proteins (CSR-1,
      WAGO-1, WAGO-4, PRG-1) and the RdRP EGO-1, all of which are RNA-binding proteins
      involved in small RNA pathways [PMID:29775580, PMID:29769721]. RNA binding is
      consistent with its role in RNA helicase activity and small RNA-mediated gene
      silencing.
    action: ACCEPT
    reason: 'RNA binding is a core function supported by multiple lines of evidence:
      the protein contains NFX1-type zinc finger domains (4 copies), localizes to
      RNA/protein granules, and functions in small RNA pathways. IBA phylogenetic
      inference is appropriate given conservation across species. Falcon deep research
      adds that ZNFX-1 binds small-RNA-targeted transcripts bearing poly(UG) tails
      and physically associates with the RdRP EGO-1 and Argonautes CSR-1, WAGO-1 and
      PRG-1.'
    additional_reference_ids:
    - file:worm/znfx-1/znfx-1-deep-research-falcon.md
    supported_by:
    - reference_id: PMID:29775580
      supporting_text: we identify the deeply conserved helicase-domain protein, ZNFX-1,
        as an epigenetic regulator and component of nuage that interacts with Argonaute
        systems to balance epigenetic inheritance
    - reference_id: PMID:29769721
      supporting_text: ZNFX-1 is a conserved RNA helicase, which marks RNAs produced
        from genes undergoing heritable silencing
    - reference_id: file:worm/znfx-1/znfx-1-deep-research-falcon.md
      supporting_text: |-
        ZNFX-1 interacts with small-RNA-targeted transcripts that acquire **poly(UG) (pUG) tails**, and it is required to maintain pUGylation and concentrate targeted mature RNAs in perinuclear condensates
- term:
    id: GO:0031048
    label: regulatory ncRNA-mediated heterochromatin formation
  evidence_type: IBA
  original_reference_id: GO_REF:0000033
  review:
    summary: This annotation is inferred from S. pombe ortholog hrr1 (SPCC1739.03).
      While ZNFX-1 is involved in regulatory ncRNA-mediated gene silencing, its primary
      function in C. elegans appears to be cytoplasmic post-transcriptional silencing
      rather than heterochromatin formation. The key role of ZNFX-1 is transgenerational
      siRNA inheritance via cytoplasmic Z granules, not nuclear heterochromatin assembly.
    action: MODIFY
    reason: |-
      While the S. pombe ortholog hrr1 functions in heterochromatin formation,
      C. elegans ZNFX-1 functions primarily in cytoplasmic transgenerational RNAi
      inheritance. The term is too specific to the nuclear heterochromatin pathway.
      A more appropriate term would reflect its role in siRNA-mediated gene silencing.
      Falcon deep research reinforces this: ZNFX-1 acts in a cytoplasmic/perinuclear
      amplification loop operating in parallel to nuclear HRDE-1, where HRDE-1 targets
      nascent transcripts while ZNFX-1 targets mature transcripts in nuage; znfx-1
      mutants are specifically defective in cytoplasm-only inheritance (viability ~6.87%
      vs ~85% in controls).
    proposed_replacement_terms:
    - id: GO:0140766
      label: siRNA-mediated post-transcriptional gene silencing
    - id: GO:0031047
      label: regulatory ncRNA-mediated gene silencing
    additional_reference_ids:
    - file:worm/znfx-1/znfx-1-deep-research-falcon.md
    supported_by:
    - reference_id: PMID:29769721
      supporting_text: The data establish that ZNFX-1 is a dedicated RNAi inheritance
        factor
    - reference_id: UniProt:E9P860
      supporting_text: Epigenetic inheritance factor which, in association with the
        Argonaute protein wago-4, mediates small RNA-directed transgenerational epigenetic
        inheritance
    - reference_id: file:worm/znfx-1/znfx-1-deep-research-falcon.md
      supporting_text: |-
        HRDE-1 targets nascent transcripts, while ZNFX-1 targets **mature transcripts** in nuage, maintains **pUGylated RNAs**, and promotes robust tertiary 22G-RNA amplification in inheriting generations.
- term:
    id: GO:0031380
    label: nuclear RNA-directed RNA polymerase complex
  evidence_type: IBA
  original_reference_id: GO_REF:0000033
  review:
    summary: This annotation is inferred from S. pombe ortholog hrr1. However, in
      C. elegans, ZNFX-1 does not localize to the nucleus but rather to cytoplasmic
      perinuclear granules (Z granules). While ZNFX-1 interacts with the RdRP EGO-1,
      this interaction occurs in cytoplasmic nuage, not in a nuclear complex. The
      primary localization of ZNFX-1 is to Z granules adjacent to P granules in the
      perinuclear region.
    action: REMOVE
    reason: UniProt explicitly states ZNFX-1 localizes to "Cytoplasm, perinuclear
      region" and "Cytoplasmic granule" (Z granules). There is no evidence for nuclear
      localization in C. elegans. The S. pombe ortholog hrr1 has a distinct nuclear
      function that does not apply to the C. elegans protein.
    supported_by:
    - reference_id: PMID:29769721
      supporting_text: Later in germline development, ZNFX-1 and WAGO-4 separate from
        P granules to define an independent liquid-like condensate that we term the
        Z granule
    - reference_id: PMID:29775580
      supporting_text: we identify the deeply conserved helicase-domain protein, ZNFX-1,
        as an epigenetic regulator and component of nuage
- term:
    id: GO:0000166
    label: nucleotide binding
  evidence_type: IEA
  original_reference_id: GO_REF:0000043
  review:
    summary: ZNFX-1 contains a UvrD-like helicase ATP-binding domain (residues 1040-1545)
      and has been assigned EC 3.6.4.13 (RNA helicase) activity. The protein has a
      characterized ATP binding site (residues 1061-1068). Nucleotide binding is consistent
      with its helicase function.
    action: ACCEPT
    reason: This is a parent term of ATP binding (GO:0005524) which is directly supported
      by the domain architecture. While less specific, it is not incorrect. The IEA
      annotation from UniProt keyword mapping is valid.
    supported_by:
    - reference_id: UniProt:E9P860
      supporting_text: Alternative splicing; ATP-binding; Cytoplasm; Helicase; Hydrolase
- term:
    id: GO:0003723
    label: RNA binding
  evidence_type: IEA
  original_reference_id: GO_REF:0000043
  review:
    summary: Duplicate of the IBA annotation. ZNFX-1 contains NFX1-type zinc finger
      domains and functions in RNA/protein granules involved in small RNA pathways.
      RNA binding is consistent with its role as an RNA helicase.
    action: ACCEPT
    reason: While this duplicates the IBA annotation, both are valid. The IEA annotation
      from UniProt keyword mapping independently supports RNA binding based on domain
      content.
    supported_by:
    - reference_id: PMID:29775580
      supporting_text: we identify the deeply conserved helicase-domain protein, ZNFX-1,
        as an epigenetic regulator and component of nuage that interacts with Argonaute
        systems to balance epigenetic inheritance
- term:
    id: GO:0003724
    label: RNA helicase activity
  evidence_type: IEA
  original_reference_id: GO_REF:0000003
  review:
    summary: ZNFX-1 is assigned EC 3.6.4.13 (RNA helicase) and contains a UvrD-like
      helicase ATP-binding domain. Mutagenesis studies show that mutations in the
      helicase domain (K1067A in Walker A motif, L1530F, Y1562C) disrupt RNA-induced
      gene silencing, demonstrating the functional importance of helicase activity.
    action: ACCEPT
    reason: This is a core molecular function of ZNFX-1. The protein is classified
      as an RNA helicase (EC 3.6.4.13) and contains the characteristic helicase domain.
      Mutagenesis of helicase domain residues abolishes function. Falcon deep research
      confirms ZNFX-1 is a UPF1-like superfamily-1 (SF1) helicase whose helicase core
      is functionally essential (ATP-binding-site mutant K1067A and helicase-domain
      deletions cause inheritance defects), acting in small-RNA amplification rather
      than as a classical metabolic enzyme.
    additional_reference_ids:
    - file:worm/znfx-1/znfx-1-deep-research-falcon.md
    supported_by:
    - reference_id: UniProt:E9P860
      supporting_text: EC=3.6.4.13 {ECO:0000305|PubMed:29775580}
    - reference_id: PMID:29769721
      supporting_text: ZK1067.2 encodes a 2443 amino acid protein that contains a
        superfamily one (SF1) RNA helicase domain and a Zn finger domain
    - reference_id: file:worm/znfx-1/znfx-1-deep-research-falcon.md
      supporting_text: |-
        **central UPF1-like SF1 helicase domain** and **six cysteine-rich NF-X1-like motifs**
- term:
    id: GO:0004386
    label: helicase activity
  evidence_type: IEA
  original_reference_id: GO_REF:0000120
  review:
    summary: This is a parent term of RNA helicase activity (GO:0003724). ZNFX-1 contains
      InterPro domain IPR041677 (DNA2/NAM7_AAA_11) which supports helicase activity
      classification.
    action: ACCEPT
    reason: Valid parent term of the more specific RNA helicase activity. The annotation
      is consistent with domain architecture and functional data.
    supported_by:
    - reference_id: PMID:29769721
      supporting_text: ZK1067.2 encodes a 2443 amino acid protein that contains a
        superfamily one (SF1) RNA helicase domain and a Zn finger domain
- term:
    id: GO:0005524
    label: ATP binding
  evidence_type: IEA
  original_reference_id: GO_REF:0000043
  review:
    summary: ZNFX-1 has a characterized ATP binding site at residues 1061-1068 within
      the UvrD-like helicase ATP-binding domain. The Walker A motif lysine (K1067)
      is critical for function, as K1067A mutation causes defective RNA-induced gene
      silencing.
    action: ACCEPT
    reason: ATP binding is a core molecular function supported by domain architecture
      and validated by mutagenesis.
    supported_by:
    - reference_id: UniProt:E9P860
      supporting_text: Alternative splicing; ATP-binding; Cytoplasm; Helicase; Hydrolase
    - reference_id: UniProt:E9P860
      supporting_text: 'K->A: In ne4382; defective RNA-induced gene silencing'
- term:
    id: GO:0005634
    label: nucleus
  evidence_type: IEA
  original_reference_id: GO_REF:0000002
  review:
    summary: This annotation is based on InterPro domain IPR000967 (NF-X1 zinc finger),
      which in some family members is associated with nuclear localization. However,
      experimental evidence in C. elegans shows ZNFX-1 localizes to cytoplasmic perinuclear
      granules (Z granules), not the nucleus itself.
    action: REMOVE
    reason: Experimental evidence from multiple publications demonstrates cytoplasmic
      localization to Z granules and perinuclear region, not nuclear localization.
      UniProt subcellular location explicitly lists "Cytoplasm, perinuclear region"
      and "Cytoplasmic granule" with no nuclear localization.
    supported_by:
    - reference_id: PMID:29769721
      supporting_text: Later in germline development, ZNFX-1 and WAGO-4 separate from
        P granules to define an independent liquid-like condensate that we term the
        Z granule
    - reference_id: UniProt:E9P860
      supporting_text: 'SUBCELLULAR LOCATION: Cytoplasm, perinuclear region'
- term:
    id: GO:0005694
    label: chromosome
  evidence_type: IEA
  original_reference_id: GO_REF:0000117
  review:
    summary: This annotation from ARBA machine learning model (ARBA00026361) is not
      supported by experimental evidence. ZNFX-1 localizes to cytoplasmic granules
      (Z granules, P granules), not chromosomes. There is no evidence for direct chromosome
      association.
    action: REMOVE
    reason: No experimental evidence supports chromosome localization. The protein
      functions in cytoplasmic RNA granules and perinuclear nuage. This appears to
      be an erroneous inference.
    supported_by:
    - reference_id: PMID:29769721
      supporting_text: Later in germline development, ZNFX-1 and WAGO-4 separate from
        P granules to define an independent liquid-like condensate that we term the
        Z granule
    - reference_id: PMID:29775580
      supporting_text: we identify the deeply conserved helicase-domain protein, ZNFX-1,
        as an epigenetic regulator and component of nuage
- term:
    id: GO:0005737
    label: cytoplasm
  evidence_type: IEA
  original_reference_id: GO_REF:0000044
  review:
    summary: ZNFX-1 localizes to cytoplasmic Z granules and P granules. UniProt explicitly
      states "Cytoplasm" and "Cytoplasm, perinuclear region" as subcellular locations.
    action: ACCEPT
    reason: Cytoplasmic localization is well-supported by experimental evidence from
      multiple publications. This is a valid general localization term.
    supported_by:
    - reference_id: UniProt:E9P860
      supporting_text: 'SUBCELLULAR LOCATION: Cytoplasm, perinuclear region'
    - reference_id: PMID:29769721
      supporting_text: Later in germline development, ZNFX-1 and WAGO-4 separate from
        P granules to define an independent liquid-like condensate that we term the
        Z granule
- term:
    id: GO:0008270
    label: zinc ion binding
  evidence_type: IEA
  original_reference_id: GO_REF:0000120
  review:
    summary: ZNFX-1 contains four NF-X1-type zinc finger domains (at positions 1769-1791,
      1853-1873, 1912-1930, 2027-2044). These domains require zinc ions for structural
      integrity and function.
    action: ACCEPT
    reason: Zinc ion binding is directly supported by the presence of multiple NFX1-type
      zinc finger domains in the protein sequence. This is a valid molecular function
      annotation.
    supported_by:
    - reference_id: UniProt:E9P860
      supporting_text: RNA-mediated gene silencing; Zinc; Zinc-finger
- term:
    id: GO:0016787
    label: hydrolase activity
  evidence_type: IEA
  original_reference_id: GO_REF:0000043
  review:
    summary: ZNFX-1 is classified as EC 3.6.4.13 (RNA helicase), which is a subclass
      of hydrolase activity. The protein catalyzes ATP hydrolysis coupled to RNA unwinding.
    action: ACCEPT
    reason: This is a valid parent term of ATP hydrolysis activity, consistent with
      the RNA helicase function.
    supported_by:
    - reference_id: UniProt:E9P860
      supporting_text: EC=3.6.4.13 {ECO:0000305|PubMed:29775580}
- term:
    id: GO:0016887
    label: ATP hydrolysis activity
  evidence_type: IEA
  original_reference_id: GO_REF:0000116
  review:
    summary: ZNFX-1 catalyzes ATP hydrolysis as part of its RNA helicase function.
      UniProt assigns the reaction "ATP + H2O = ADP + phosphate + H(+)" with Rhea
      reference RHEA:13065.
    action: ACCEPT
    reason: ATP hydrolysis is the energy source for RNA helicase activity. This is
      a core molecular function directly supported by the EC classification and Rhea
      reaction mapping.
    supported_by:
    - reference_id: UniProt:E9P860
      supporting_text: Reaction=ATP + H2O = ADP + phosphate + H(+)
- term:
    id: GO:0031047
    label: regulatory ncRNA-mediated gene silencing
  evidence_type: IEA
  original_reference_id: GO_REF:0000043
  review:
    summary: ZNFX-1 is essential for small RNA-mediated transgenerational gene silencing.
      It functions in the RNAi inheritance pathway, maintaining silencing signals
      across generations. znfx-1 mutants respond normally to RNAi but cannot transmit
      silencing to progeny.
    action: ACCEPT
    reason: This is a core biological process function of ZNFX-1. The protein is dedicated
      to transgenerational siRNA-mediated gene silencing in the germline. Falcon deep
      research confirms ZNFX-1 enables amplification, patterning and persistence of
      small-RNA-guided silencing across generations.
    additional_reference_ids:
    - file:worm/znfx-1/znfx-1-deep-research-falcon.md
    supported_by:
    - reference_id: PMID:29769721
      supporting_text: The data establish that ZNFX-1 is a dedicated RNAi inheritance
        factor
    - reference_id: UniProt:E9P860
      supporting_text: Plays a role in small RNA- induced gene silencing in the germline
        (PubMed:29775580)
    - reference_id: file:worm/znfx-1/znfx-1-deep-research-falcon.md
      supporting_text: |-
        ZNFX-1 is best supported as an **RNA helicase/NTPase-like regulatory factor** that acts in **perinuclear condensates** to enable **amplification, patterning, and persistence** of small-RNAโ€“guided silencing across generations.
- term:
    id: GO:0046872
    label: metal ion binding
  evidence_type: IEA
  original_reference_id: GO_REF:0000043
  review:
    summary: This is a parent term of zinc ion binding. ZNFX-1 contains four NFX1-type
      zinc finger domains that bind zinc ions.
    action: ACCEPT
    reason: Valid parent term of zinc ion binding, consistent with the zinc finger
      domain content.
    supported_by:
    - reference_id: UniProt:E9P860
      supporting_text: Metal-binding; Nucleotide-binding; Reference proteome
- term:
    id: GO:0048471
    label: perinuclear region of cytoplasm
  evidence_type: IEA
  original_reference_id: GO_REF:0000044
  review:
    summary: ZNFX-1 localizes to perinuclear nuage where it defines Z granules. P
      granules, Z granules, and Mutator foci form ordered PZM assemblages in the perinuclear
      region of germline cells.
    action: ACCEPT
    reason: Perinuclear localization is strongly supported by experimental evidence.
      This is a core localization for ZNFX-1 in germline cells. Falcon deep research
      confirms ZNFX-1 localizes to perinuclear and cytoplasmic foci in germ cells and
      to Z-granule subdomains within perinuclear nuage.
    additional_reference_ids:
    - file:worm/znfx-1/znfx-1-deep-research-falcon.md
    supported_by:
    - reference_id: PMID:29775580
      supporting_text: we identify the deeply conserved helicase-domain protein, ZNFX-1,
        as an epigenetic regulator and component of nuage
    - reference_id: PMID:29769721
      supporting_text: In adult germ cells, GFP::ZNFX-1 was concentrated in foci that
        were distributed in a perinuclear pattern around nuclei
    - reference_id: file:worm/znfx-1/znfx-1-deep-research-falcon.md
      supporting_text: |-
        ZNFX-1 localizes to **perinuclear and cytoplasmic foci in germ cells** and to Z-granule subdomains within perinuclear nuage.
- term:
    id: GO:0120279
    label: Z granule
  evidence_type: IDA
  original_reference_id: PMID:29769721
  review:
    summary: ZNFX-1 is the defining marker of Z granules, a class of liquid-like condensates
      distinct from P granules. Z granules were named for ZNFX-1, which defines these
      structures. The protein localizes to Z granules during oocyte maturation and
      in adult germ cells.
    action: NEW
    reason: Z granule localization is the most specific and characteristic localization
      for ZNFX-1. The granules are named after this protein. This annotation should
      have IDA evidence based on direct microscopy observation. Falcon deep research
      confirms ZNFX-1 and WAGO-4 demix from P granules to form an independent liquid-like
      Z-granule condensate.
    additional_reference_ids:
    - file:worm/znfx-1/znfx-1-deep-research-falcon.md
    supported_by:
    - reference_id: PMID:29769721
      supporting_text: Later in germline development, ZNFX-1 and WAGO-4 separate from
        P granules to define an independent liquid-like condensate that we term the
        Z granule
    - reference_id: PMID:29775580
      supporting_text: recently identified subdomains of nuage, including ZNFX-1 granules
        or "Z-granules," may define spatial and temporal zones of molecular activity
        during epigenetic regulation
    - reference_id: file:worm/znfx-1/znfx-1-deep-research-falcon.md
      supporting_text: |-
        In early embryos ZNFX-1 and WAGO-4 localize with P granules, then **demix** to form an independent liquid-like condensate (Z granule)
- term:
    id: GO:0043186
    label: P granule
  evidence_type: IDA
  original_reference_id: PMID:29769721
  review:
    summary: ZNFX-1 co-localizes with WAGO-4 in P granules in early germline blastomeres
      (P1-P3) of the embryo, before demixing to form an independent Z granule condensate.
      P granule co-localization is a transient developmental phenomenon of early embryos/germline
      blastomeres; in adult germ cells ZNFX-1 is instead concentrated in Z granules
      that are closely apposed to (adjacent to) P granules rather than co-localizing
      within them.
    action: NEW
    reason: P granule localization is experimentally demonstrated for early embryonic
      germline blastomeres and represents a transient developmental aspect of ZNFX-1
      localization before Z granule segregation. In adult germ cells ZNFX-1 occupies
      Z granules apposed to P granules (GO:0120279), not P granules per se.
    supported_by:
    - reference_id: PMID:29769721
      supporting_text: GFP::ZNFX-1 and GFP::WAGO-4 colocalized with PGL-1::TagRFP
        in P1-P3 germline blastomeres, suggesting that ZNFX-1 and WAGO-4 are P granule
        factors
- term:
    id: GO:0140766
    label: siRNA-mediated post-transcriptional gene silencing
  evidence_type: IMP
  original_reference_id: PMID:29769721
  review:
    summary: ZNFX-1 is required for transgenerational siRNA inheritance. znfx-1 mutants
      respond normally to RNAi but cannot transmit silencing to progeny, demonstrating
      a specific role in siRNA inheritance rather than the initial silencing response.
    action: NEW
    reason: This is more specific than the general "regulatory ncRNA-mediated gene
      silencing" term and accurately reflects the siRNA-specific function of ZNFX-1.
      Falcon deep research notes that znfx-1 mutants can show normal immediate RNAi
      responses yet fail to transmit silencing to progeny, consistent with a role in
      maintenance/amplification of the silencing signal.
    additional_reference_ids:
    - file:worm/znfx-1/znfx-1-deep-research-falcon.md
    supported_by:
    - reference_id: PMID:29769721
      supporting_text: The data establish that ZNFX-1 is a dedicated RNAi inheritance
        factor
    - reference_id: UniProt:E9P860
      supporting_text: Plays a role in small RNA- induced gene silencing in the germline
        (PubMed:29775580)
    - reference_id: file:worm/znfx-1/znfx-1-deep-research-falcon.md
      supporting_text: |-
        mutants can show normal immediate RNAi responses yet fail to transmit silencing to progeny, consistent with ZNFX-1 acting in maintenance/amplification rather than initiation
references:
- id: PMID:29769721
  title: Spatiotemporal regulation of liquid-like condensates in epigenetic inheritance
  findings:
  - statement: ZNFX-1 defines Z granules, liquid-like condensates distinct from P
      granules
    supporting_text: Later in germline development, ZNFX-1 and WAGO-4 separate from
      P granules to define an independent liquid-like condensate that we term the
      Z granule
  - statement: ZNFX-1 and WAGO-4 act cooperatively for transgenerational siRNA inheritance
    supporting_text: WAGO-4 functions with ZNFX-1 to transmit RNA-based epigenetic
      information across generations
  - statement: Z granules form tri-condensate PZM assemblages with P granules and
      Mutator foci
    supporting_text: In adult germ cells, Z granules assemble into ordered tri-condensate
      assemblages with P granules and Mutator foci, which we term PZM granules
  - statement: ZNFX-1 is a dedicated RNAi inheritance factor
    supporting_text: The data establish that ZNFX-1 is a dedicated RNAi inheritance
      factor
  - statement: ZNFX-1 is a conserved RNA helicase in small RNA pathways
    supporting_text: ZNFX-1 is a conserved RNA helicase, which marks RNAs produced
      from genes undergoing heritable silencing
- id: PMID:29775580
  title: ZNFX-1 Functions within Perinuclear Nuage to Balance Epigenetic Signals
  findings:
  - statement: ZNFX-1 interacts with Argonaute systems
    supporting_text: we identify the deeply conserved helicase-domain protein, ZNFX-1,
      as an epigenetic regulator and component of nuage that interacts with Argonaute
      systems to balance epigenetic inheritance
  - statement: ZNFX-1 prevents spread of epigenetic signals toward 5'-end of target
      mRNAs
    supporting_text: Our findings suggest that ZNFX-1 promotes the 3' recruitment
      of machinery that propagates the small RNA epigenetic signal and thus counteracts
      a tendency for Argonaute targeting to shift 5' along the mRNA
  - statement: Z granules are subdomains of nuage named for ZNFX-1
    supporting_text: recently identified subdomains of nuage, including ZNFX-1 granules
      or "Z-granules," may define spatial and temporal zones of molecular activity
      during epigenetic regulation
- id: PMID:32843637
  title: DEPS-1 is required for piRNA-dependent silencing and PIWI condensate organisation
    in Caenorhabditis elegans
  findings:
  - statement: ZNFX-1 forms condensates closely apposed to the P granule protein PGL-1
      and to Mutator foci (MUT-16), and is found in close proximity to DEPS-1 clusters
      (i.e. ZNFX-1 occupies a Z-granule compartment adjacent to, not within, P granules
      in the adult germline)
    supporting_text: ZNFX-1 forms condensates closely appose to PGL-1 and MUT-16
- id: PMID:35739318
  title: The conserved helicase ZNFX-1 memorializes silenced RNAs in perinuclear condensates
  findings:
  - statement: ZNFX-1 acts in a cytoplasmic/perinuclear small RNA amplification loop
      (parallel to the nuclear HRDE-1 loop) that targets mature transcripts and concentrates
      them in perinuclear condensates
    supporting_text: The second loop, dependent on the conserved helicase ZNFX-1, targets
      mature transcripts and concentrates them in perinuclear condensates
  - statement: ZNFX-1 binds small-RNA-targeted transcripts bearing poly(UG) (pUG) tails
      and is required to sustain pUGylation and robust small RNA amplification in the
      inheriting generation
    supporting_text: ZNFX-1 interacts with sRNA-targeted transcripts that have acquired
      poly(UG) tails and is required to sustain pUGylation and robust sRNA amplification
      in the inheriting generation
- id: PMID:37878696
  title: Nucleus-independent transgenerational small RNA inheritance in Caenorhabditis
    elegans
  findings:
  - statement: ZNFX-1 is required for nucleus-independent (cytoplasm-only) RNAi inheritance,
      confirming its role in a cytoplasmic inheritance pathway distinct from nuclear
      chromatin-based inheritance
    supporting_text: ZNFX-1 is required for nucleus-independent RNAi inheritance
- id: GO_REF:0000002
  title: Gene Ontology annotation through association of InterPro records with GO
    terms
  findings: []
- id: GO_REF:0000003
  title: Gene Ontology annotation based on Enzyme Commission mapping
  findings: []
- id: GO_REF:0000033
  title: Annotation inferences using phylogenetic trees
  findings: []
- id: GO_REF:0000043
  title: Gene Ontology annotation based on UniProtKB/Swiss-Prot keyword mapping
  findings: []
- id: GO_REF:0000044
  title: Gene Ontology annotation based on UniProtKB/Swiss-Prot Subcellular Location
    vocabulary mapping
  findings: []
- id: GO_REF:0000116
  title: Automatic Gene Ontology annotation based on Rhea mapping
  findings: []
- id: GO_REF:0000117
  title: Electronic Gene Ontology annotations created by ARBA machine learning models
  findings: []
- id: GO_REF:0000120
  title: Combined Automated Annotation using Multiple IEA Methods
  findings: []
- id: file:worm/znfx-1/znfx-1-deep-research-falcon.md
  title: Falcon deep research report on C. elegans znfx-1 (ZNFX-1, UniProt E9P860)
  findings:
  - statement: |-
      ZNFX-1 is a UPF1-like superfamily-1 (SF1) RNA helicase / NTPase-like regulatory
      factor with six cysteine-rich NF-X1-like motifs that acts in perinuclear
      condensates to enable amplification, patterning and persistence of small-RNA-guided
      silencing across generations, rather than catalyzing a classical metabolic reaction.
    supporting_text: |-
      ZNFX-1 is best supported as an **RNA helicase/NTPase-like regulatory factor** that acts in **perinuclear condensates** to enable **amplification, patterning, and persistence** of small-RNAโ€“guided silencing across generations.
    reference_section_type: OTHER
  - statement: |-
      ZNFX-1 binds small-RNA-targeted transcripts bearing poly(UG) (pUG) tails and is
      required to maintain pUGylation and concentrate targeted mature RNAs in perinuclear
      condensates, preserving templates for continued amplification in inheriting generations.
    supporting_text: |-
      ZNFX-1 interacts with small-RNA-targeted transcripts that acquire **poly(UG) (pUG) tails**, and it is required to maintain pUGylation and concentrate targeted mature RNAs in perinuclear condensates, thereby preserving a pool of templates for continued amplification in the inheriting generation.
    reference_section_type: OTHER
  - statement: |-
      ZNFX-1 physically associates with the germline RdRP EGO-1 and Argonautes CSR-1,
      WAGO-1 and PRG-1; the ZNFX-1:EGO-1 interaction is RNase-resistant (RNA-independent).
    supporting_text: |-
      Co-immunoprecipitation experiments indicate that ZNFX-1 physically associates with the germline RdRP **EGO-1** and multiple Argonautes spanning distinct small-RNA systems, including **CSR-1, WAGO-1, and PRG-1**.
    reference_section_type: OTHER
  - statement: |-
      ZNFX-1 helps position RdRP to favor 3' recruitment and balanced 22G-RNA synthesis
      along transcripts; loss of ZNFX-1 mispatterns 22G-RNAs toward 5' ends of mRNAs.
    supporting_text: |-
      ZNFX-1 helps position RdRP to favor **3' recruitment** and balanced 22G-RNA synthesis along transcripts
    reference_section_type: OTHER
  - statement: |-
      ZNFX-1 acts in a cytoplasmic/perinuclear amplification loop parallel to nuclear
      HRDE-1, with HRDE-1 targeting nascent transcripts and ZNFX-1 targeting mature
      transcripts in nuage and maintaining pUGylated RNAs for tertiary 22G-RNA amplification.
    supporting_text: |-
      HRDE-1 targets nascent transcripts, while ZNFX-1 targets **mature transcripts** in nuage, maintains **pUGylated RNAs**, and promotes robust tertiary 22G-RNA amplification in inheriting generations.
    reference_section_type: OTHER
  - statement: |-
      In early embryos ZNFX-1 and WAGO-4 localize with P granules then demix to form an
      independent liquid-like Z-granule condensate, later assembling into ordered PZM
      tri-condensate structures with P granules and Mutator foci.
    supporting_text: |-
      In early embryos ZNFX-1 and WAGO-4 localize with P granules, then **demix** to form an independent liquid-like condensate (Z granule)
    reference_section_type: OTHER
  - statement: |-
      znfx-1 mutants show normal immediate RNAi but fail to transmit silencing to
      progeny and are specifically defective in cytoplasm-only inheritance (viability
      ~6.87% vs ~85% in controls), consistent with a maintenance/amplification role.
    supporting_text: |-
      mutants can show normal immediate RNAi responses yet fail to transmit silencing to progeny, consistent with ZNFX-1 acting in maintenance/amplification rather than initiation
    reference_section_type: OTHER
core_functions:
- description: ZNFX-1 functions as an RNA helicase dedicated to transgenerational
    siRNA inheritance, maintaining small RNA-mediated gene silencing signals across
    generations.
  molecular_function:
    id: GO:0003724
    label: RNA helicase activity
  directly_involved_in:
  - id: GO:0031047
    label: regulatory ncRNA-mediated gene silencing
  - id: GO:0140766
    label: siRNA-mediated post-transcriptional gene silencing
  locations:
  - id: GO:0120279
    label: Z granule
  - id: GO:0048471
    label: perinuclear region of cytoplasm
  supported_by:
  - reference_id: PMID:29769721
    supporting_text: The data establish that ZNFX-1 is a dedicated RNAi inheritance
      factor
  - reference_id: PMID:29775580
    supporting_text: we identify the deeply conserved helicase-domain protein, ZNFX-1,
      as an epigenetic regulator and component of nuage that interacts with Argonaute
      systems to balance epigenetic inheritance
  - reference_id: file:worm/znfx-1/znfx-1-deep-research-falcon.md
    supporting_text: |-
      ZNFX-1 is best supported as an **RNA helicase/NTPase-like regulatory factor** that acts in **perinuclear condensates** to enable **amplification, patterning, and persistence** of small-RNAโ€“guided silencing across generations.
proposed_new_terms: []
suggested_questions:
- question: What is the precise mechanism by which ZNFX-1 helicase activity prevents
    5'-ward spread of small RNA signals on target mRNAs?
- question: How is ZNFX-1 inherited from oocyte to embryo, and what determines Z granule
    segregation from P granules during development?
suggested_experiments:
- description: In vitro helicase assays with purified ZNFX-1 to determine substrate
    specificity (ssRNA vs dsRNA, specific RNA sequences). This would reveal the molecular
    substrate requirements for ZNFX-1 function.
  hypothesis: ZNFX-1 preferentially unwinds specific RNA structures involved in siRNA
    biogenesis
  experiment_type: biochemical assay
- description: Proximity labeling (BioID or APEX) to comprehensively identify ZNFX-1
    interacting proteins in Z granules vs P granules. This would reveal the complete
    protein composition of Z granules and how it differs from P granules.
  hypothesis: Z granules contain a distinct proteome specialized for transgenerational
    inheritance
  experiment_type: proteomics
tags:
- caeel-p-granules
